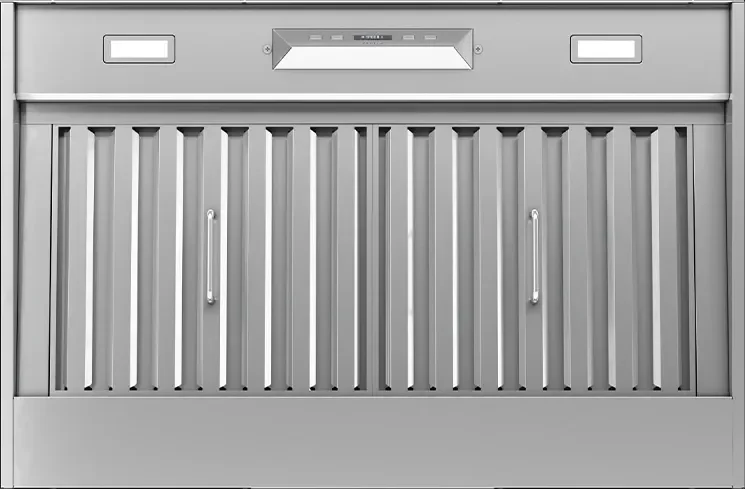

Zephyr Monsoon II, Insert, 60in, SS, TruHue in Stainless Steel

SKU: AK9358CS

0 Questions & 0 Answers

Type: Built-In
Ventilation Type: Ducted
ADA Compliant: No
Energy Star Rated: No
Cooking Power: 600 Watts
Series: Pro Collection

Zephyr Pro Collection |Authorized Dealer

Pre-Order

$2,099.00

$2,299.00 Save$200.00

⚡️ 2X reward points available

Sign in / Sign up to earn 4,198 points (

$104.95

)

color: Stainless Steel

Zephyr AK9358CS

Estimates for:

Protect Your Item

2 Year FREE

3 Year $131.99

4 Year $155.99

5 Year $195.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Monsoon II, Insert, 60in, SS, TruHue

general specification

69 items

Brand

Zephyr

Manufacturer

Zephyr

Category

Range Hood

Sub-Category

Insert

Vent Type

Ducted

UPC

646328013614

GTIN

00646328013614

Country of Origin

Taiwan

Model Group

AK93-C

Model Name

Monsoon II Insert

Collection

Pro Collection

Blower Included

Yes

Blower CFM w/ACT

390, 290

Internal Blower 1 CFM

650

Internal Blower 1 Min. Sones

1

Internal Blower 1 Max Sones

8

Internal Blower 2 Max Sones

11

Minimum CFM

200

Installation Type

Insert

For Outdoor Use

No

Color

Stainless Steel

Controls Type

Electronic

Blower Speeds

5

Automatic Delay-Off

Yes

Clean Air Function

Yes

Lighting Type

LED

Lights Quantity

4

Watts Per Bulb

6

Lights Levels

2

Grease Filter Type

Pro baffle

Compatible Mesh or Baffle Filter Part Number

50210055

Duct Discharge

Vertical or Horizontal

Duct Size; Horizontal; IN

8

Duct Size; Vertical; IN

8

Mounting Height Above Cooktop; IN

26 - 36

Voltage

120

Maximum Amperage

5

ADA Compliant

No

Warranty Parts / Labor

3 / 1

Compatible Appliances

MUA008A, MUA010A, RC-0002, PBD-1200B

Bluetooth Connected

No

Wi-Fi Connected

No

Remote Included

No

Remote Optional

Yes

Energy Star Certified

No

Alexa & Google Home Compatible

No

CEC Title 20 Compliant

Yes

CEC Title 24 Compliant

Yes

Primary Material

Stainless Steel

Wattage

600

Certification

UL

Nominal Width; IN

60

Net Width; IN

58.375

Net Depth; IN

22.5

Net Height; IN

12

Weight; LBS

61.3

Ceiling Height Minimum

8 ft.

Ceiling Height Maximum

12 ft.

Shipping Length; IN

62.1

Shipping Width; IN

16.5

Shipping Height; IN

27.8

Shipping Weight; LBS

82.2

Shipping Method

LTL

Freight Class

250

Certification #

E127334

Clean Filter Alert

Yes

Cutout Depth in.

22.75

Cutout Width in.

58.625

Duct Type

Vertical

GS1

3 items

GTIN

00646328013614

EAN

0646328013614

UPC

646328013614

Documents

Prop 65

PDF

Warranty Document

PDF

Installation Manual

PDF

Specifications Sheet

PDF

Exploded View Diagram

PDF
