Monogram 48" Freestanding Dual Fuel Smart Range, 8.3 cu. ft. Capacity in Stainless Steel

SKU: ZDP484NGTSS
Limited Time Sale
  • Fuel Type: Dual Fuel
  • Type: Freestanding
  • Width: 47.88"
  • Height: 35.25"
  • Depth: 28.50"
  • Energy Star Rated: no
  • Wi-Fi Connected: Yes
  • Sabbath Mode: Yes
  • ADA Compliant: No
  • Total Capacity: 8.25 cu. ft.
  • Cooktop Type: 4 Burners Griddle Grill
  • Cooking Technology: Convection
  • Downdraft Ventilation: No
  • Burner Type: Sealed
  • Self-Clean: Yes
  • Convection: Yes
  • Hidden Bake Element: Yes
  • Proof Mode: Yes
  • Number of Burners: 4
  • Ignition Type: ELECTRONIC
  • Hood Recommended: Yes
  • Oven Capacity: 8.25 cu. ft.
Monogram |Authorized Dealer
Pre-Order

$15,600.00

$17,160.00 Save$1,560.00
Sign in / Sign up to earn 15,600 points (
$390.00
)

color: Stainless Steel

Monogram ZDP484NGTSS
  • Solid Brass Burners
  • Versatile Gas Burner Configuration
  • Industry Exclusive-Custom Color LED Accent Lighting
  • Industry Exclusive-TrueTemp(TM) Burner
  • Solid Brass Blades on Precision Machined Knobs
Learn More

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Built-In WiFi, Powered by SmartHQ(TM) app
Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet

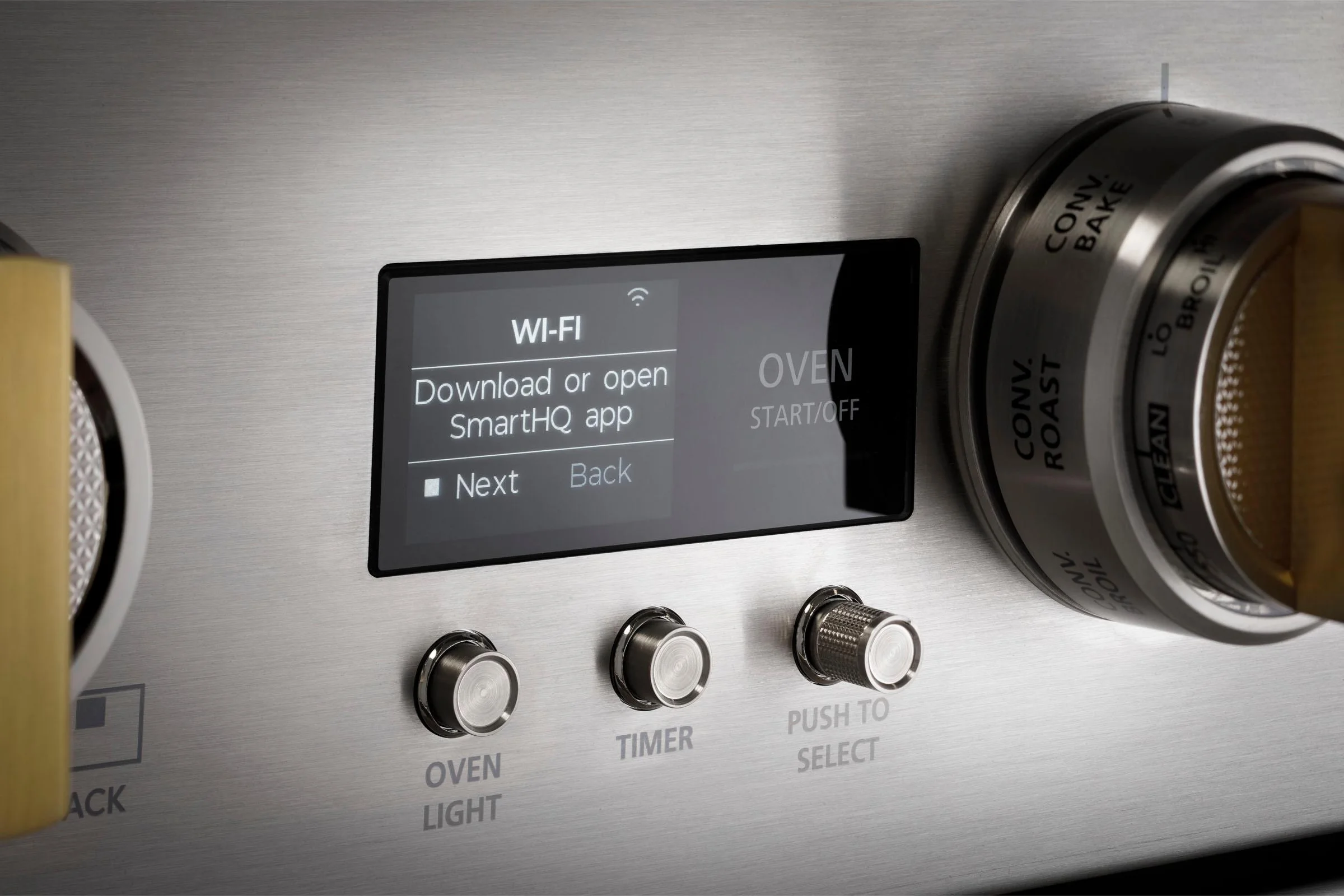

Better When Connected
Downloadable upgrades ensure your oven is always enhanced with the latest features, like Air Fry and Precision Cooking Modes
Industry Exclusive-TrueTemp(TM) Burner
This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue(TM) cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app

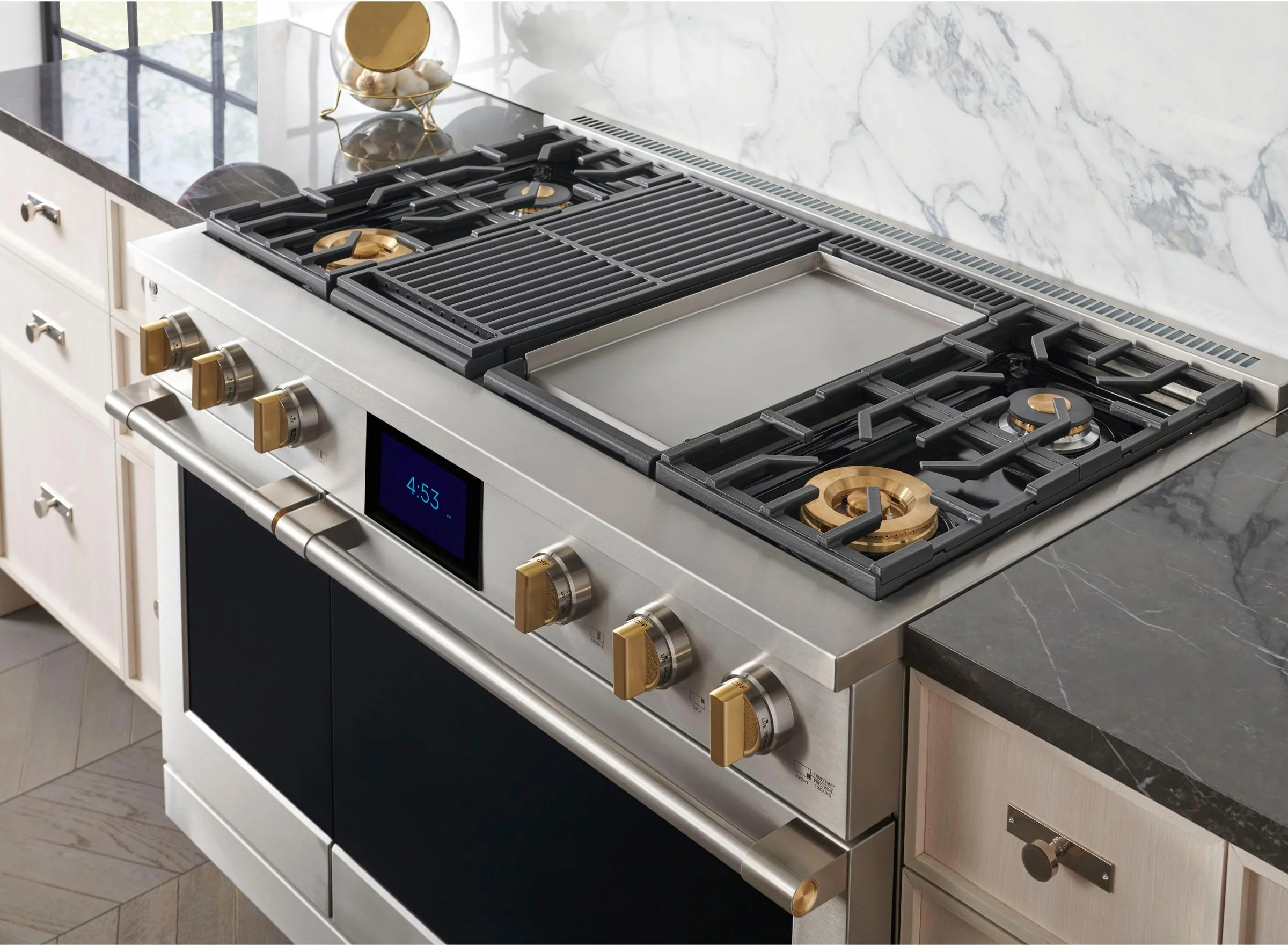

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

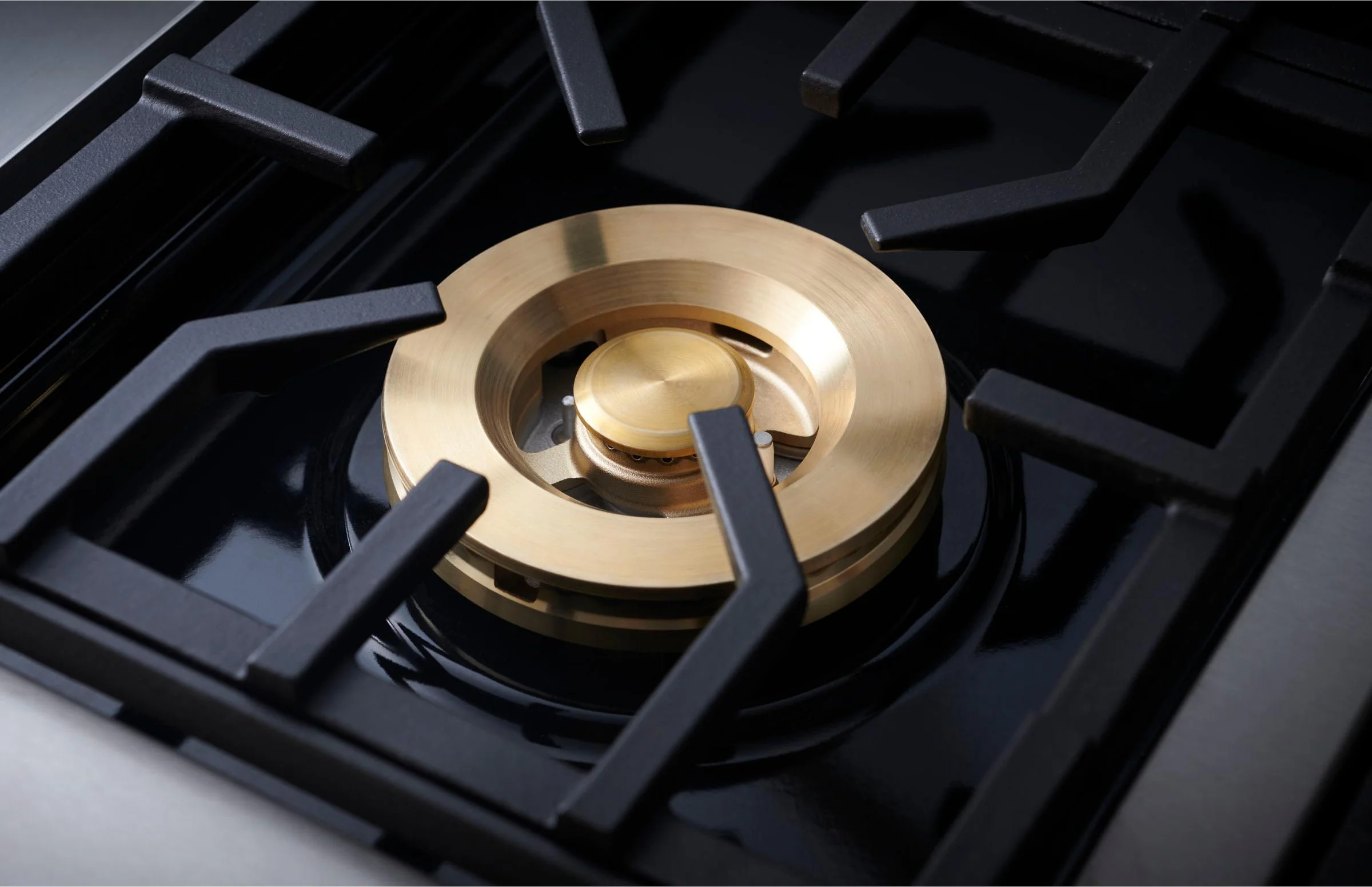

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

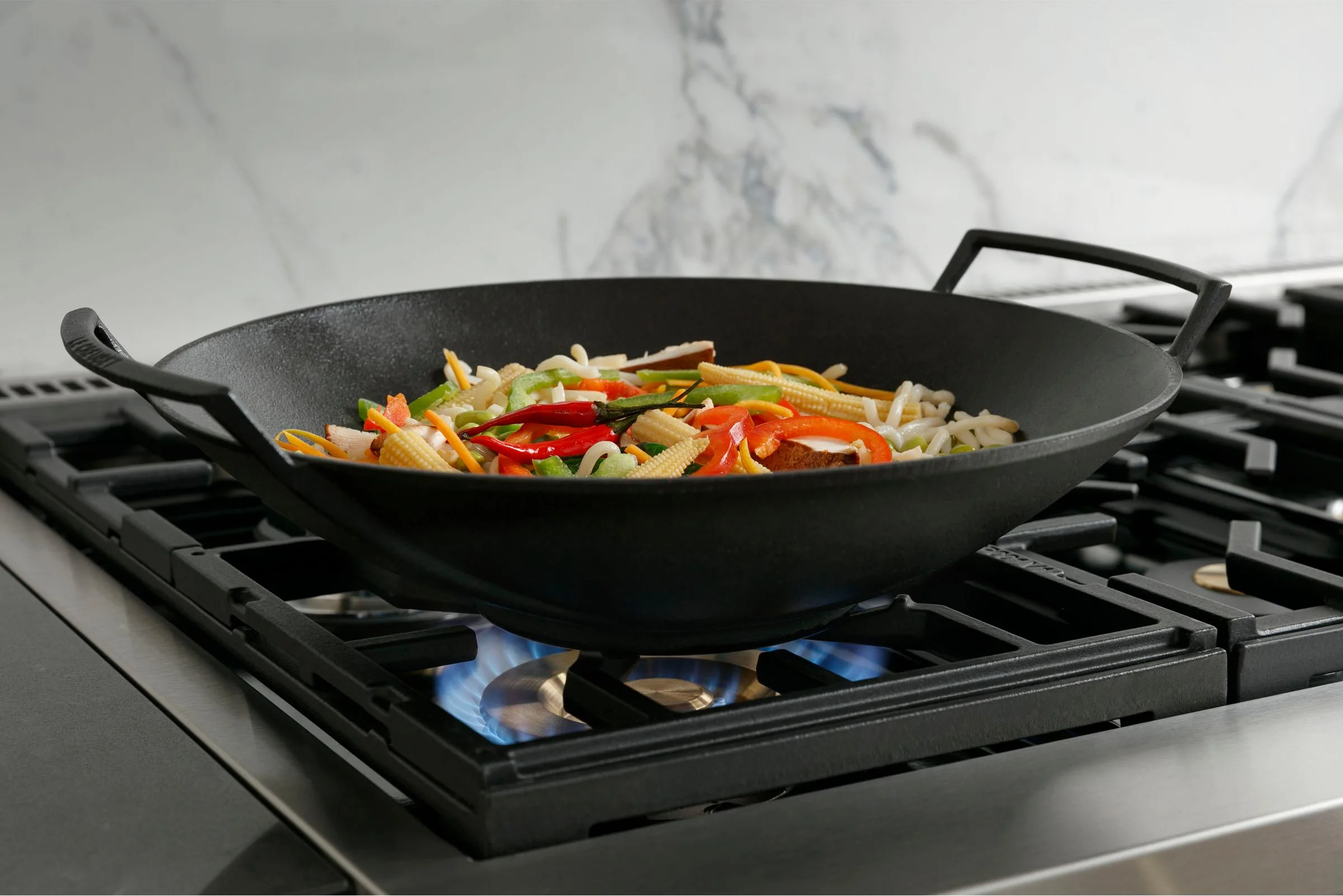

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

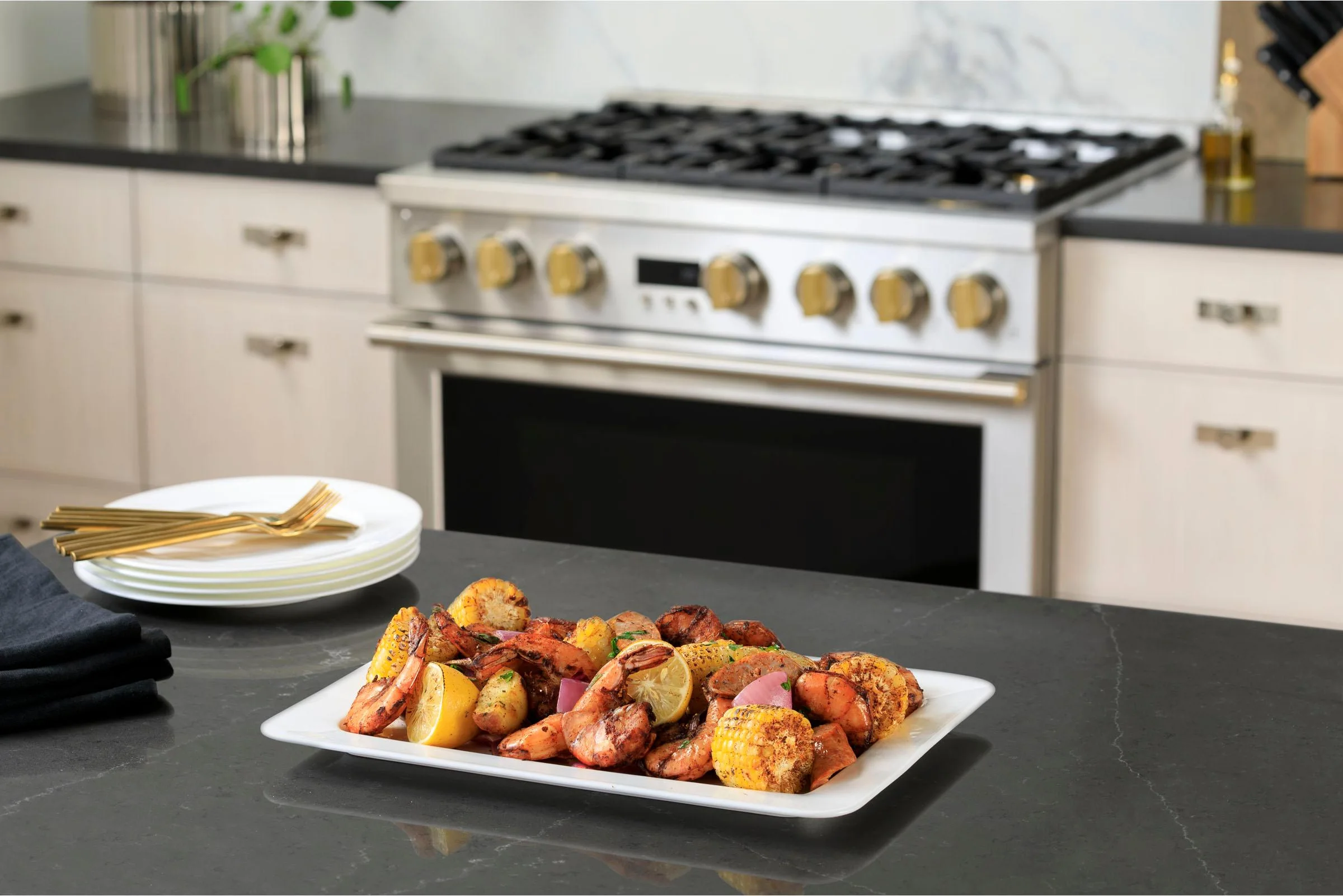

Hot Air Fry
A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter
Articulating 7" Touch LCD Control
With just a touch, this intelligently designed LCD swings out toward the user for a more ergonomic experience and then moves back flush with the control panel when not in use

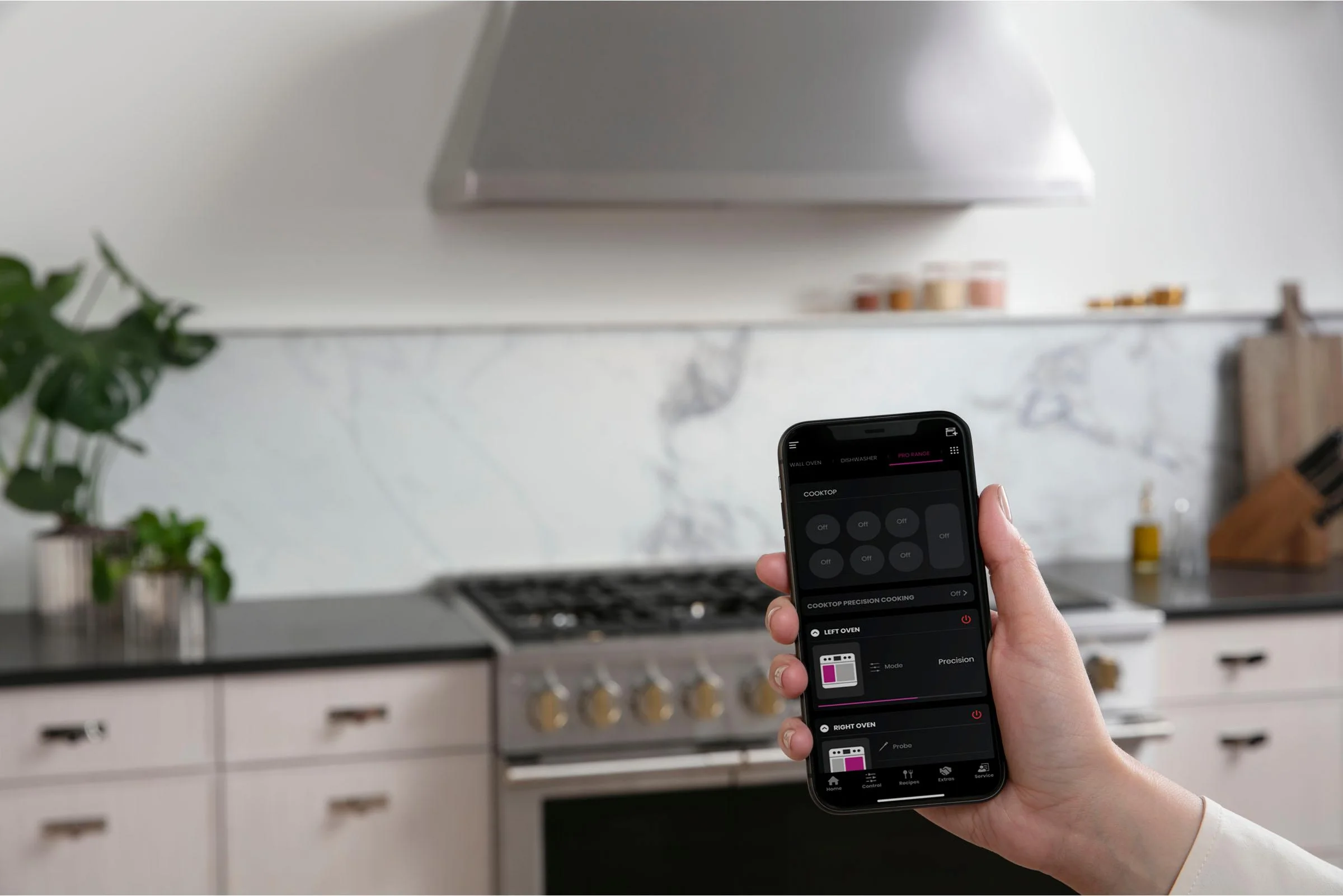

WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

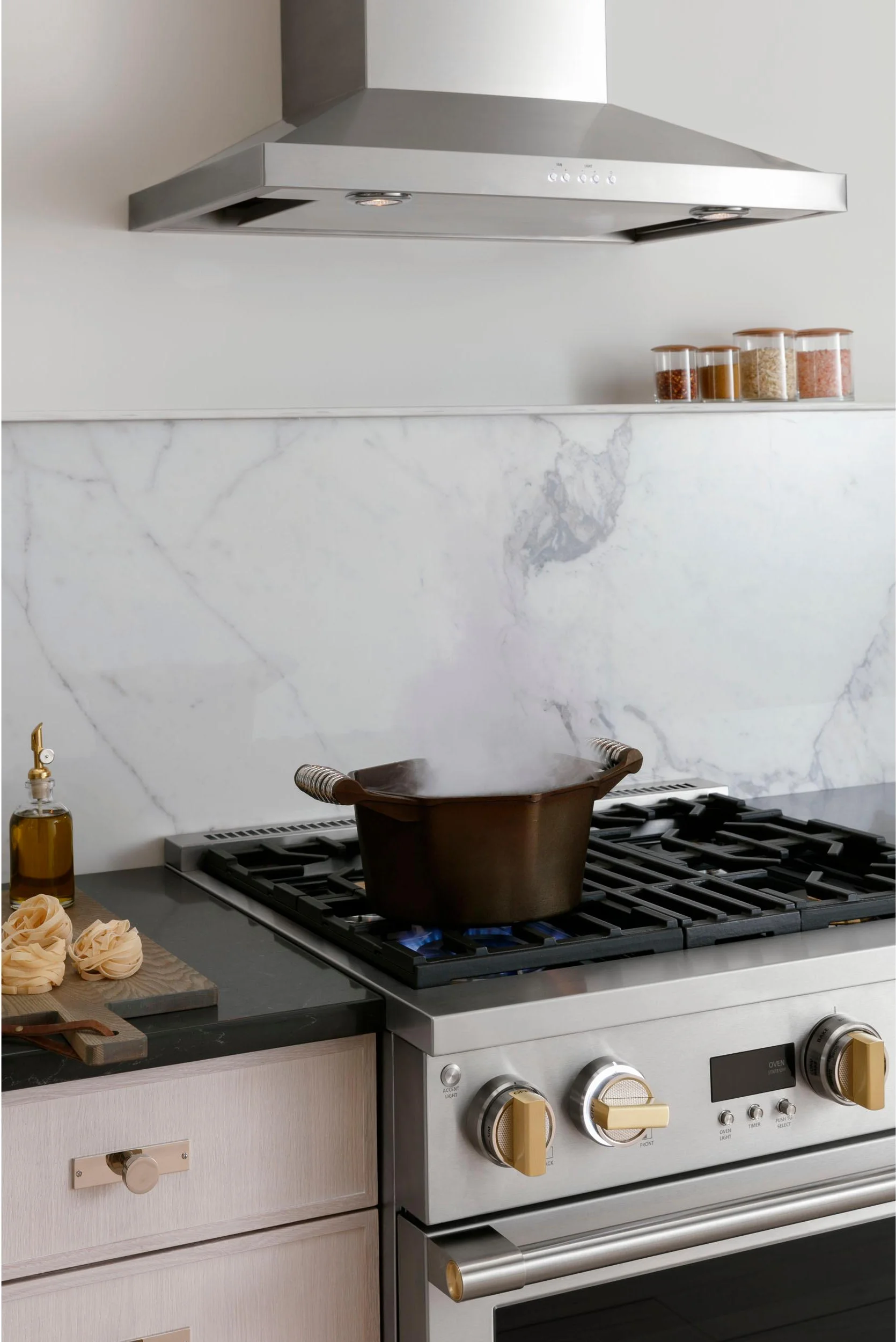

Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

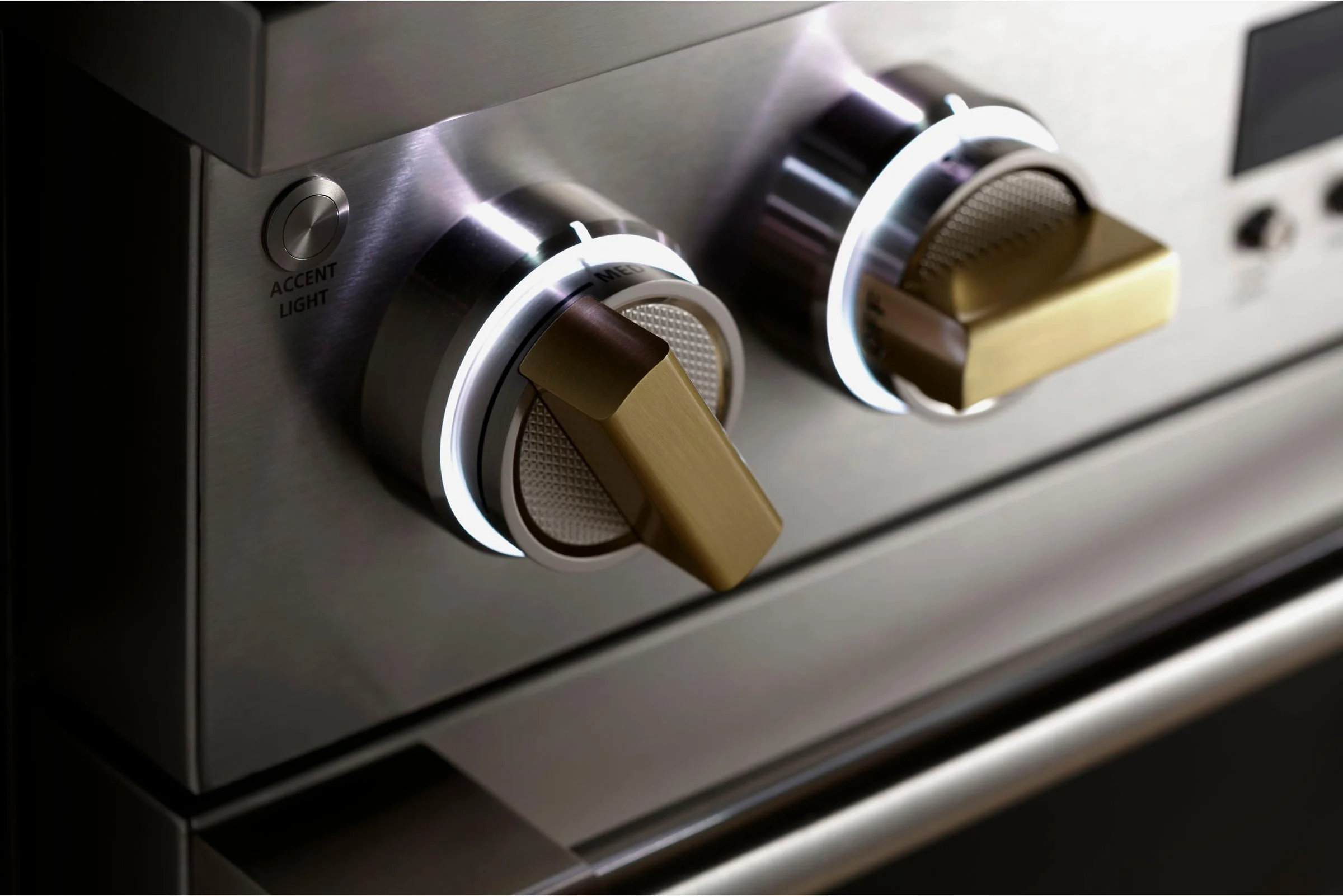

Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

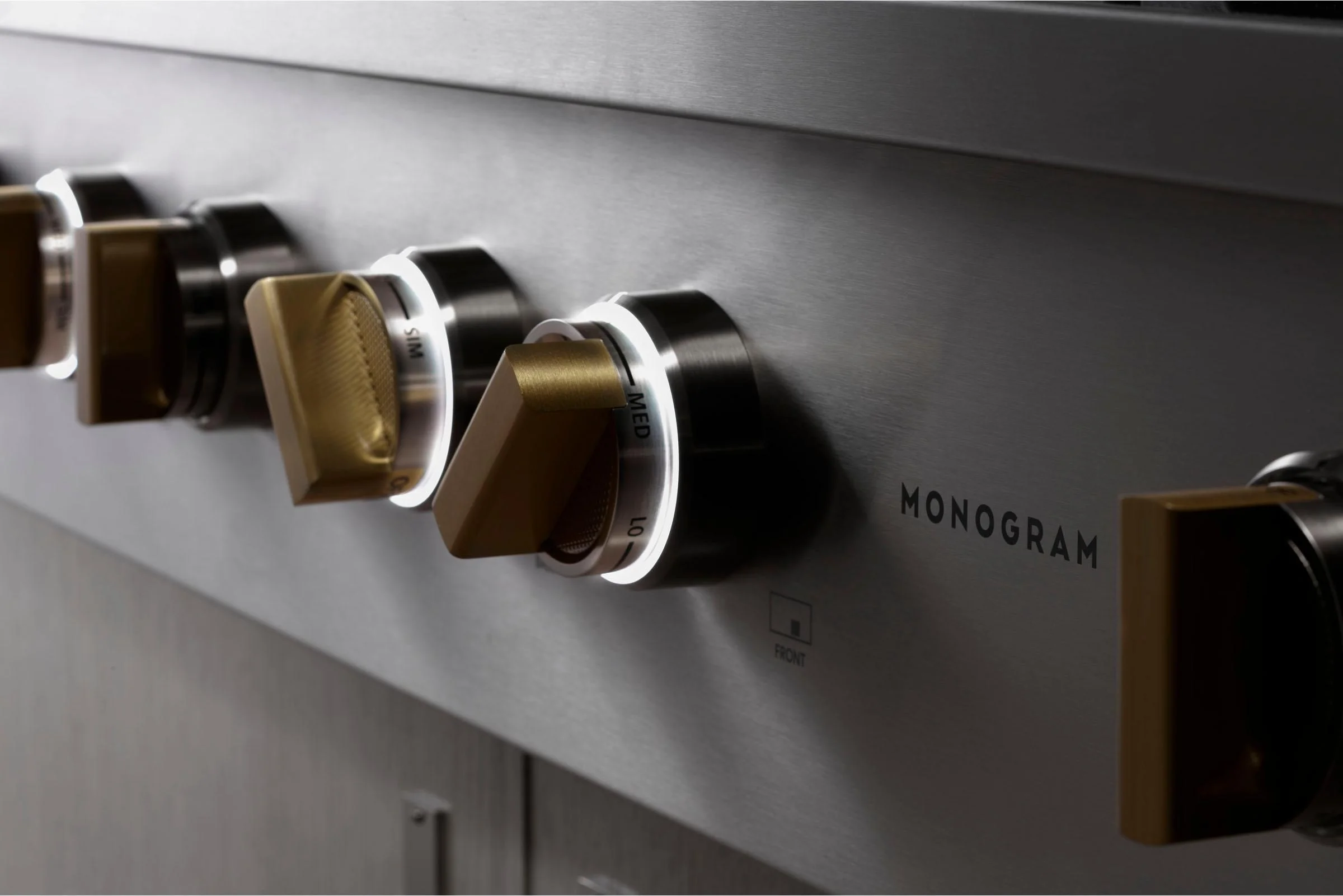

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

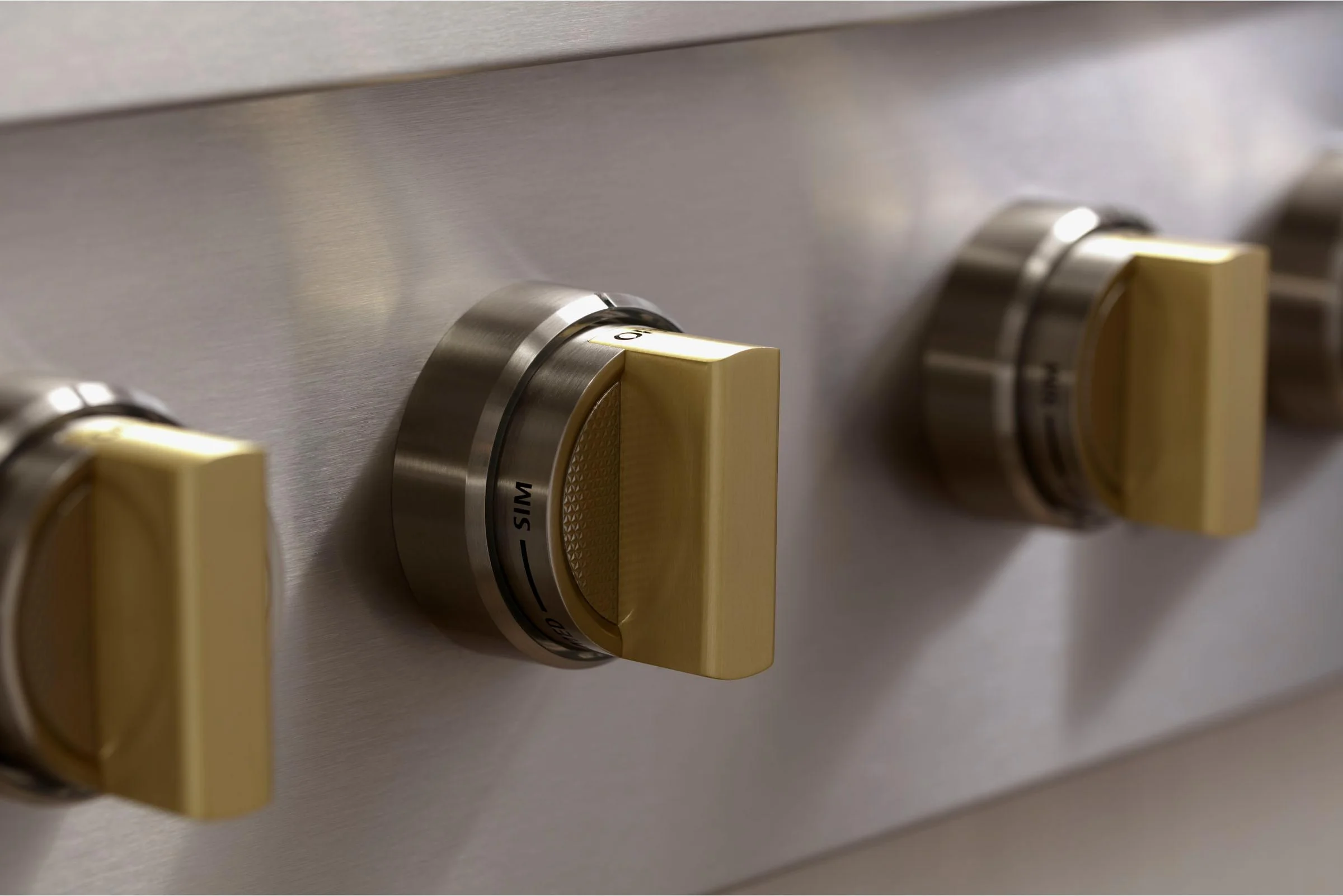

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
5 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle

Features

Solid Brass Burners

Solid Brass Burners

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Versatile Gas Burner Configuration

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

Industry Exclusive-Custom Color LED Accent Lighting

Industry Exclusive-Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

Industry Exclusive-TrueTemp(TM) Burner

Industry Exclusive-TrueTemp(TM) Burner

This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue(TM) cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app

Solid Brass Blades on Precision Machined Knobs

Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Better When Connected

Better When Connected

Downloadable upgrades ensure your oven is always enhanced with the latest features, like Air Fry and Precision Cooking Modes

Built-In WiFi, Powered by SmartHQ(TM) app

Built-In WiFi, Powered by SmartHQ(TM) app

Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet

3-Piece Grates with Reversible Wok Feature

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

WiFi Monitoring and Remote Control with the SmartHQ(TM) app

WiFi Monitoring and Remote Control with the SmartHQ(TM) app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Chef Connect

Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Hot Air Fry

Hot Air Fry

A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter

Ring-Lit Knobs

Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

Specifications

capacity

Total Capacity (cubic feet)
8.25 cu ft
Capacity (Cu. Ft.)
5.75 Caterer Oven / 2.5 Everyday Oven

appearance

Toe kick
Included
Oven Door Features
Soft Close Door
Design Style
Statement Collection
Control Knobs
Diecast Metallic (Included) Stainless Steel with Brass Accents
Color Appearance
Stainless Steel
Collection
Statement

power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 23.0; (1) 21.0; (2) 15.0
Electrical Requirements
240VAC; 50A
Top Burner BTU Rating - LP (000's BTU's)
(2) 21.0; (2) 12.0
Grill BTU Rating (000's/BTU) - LP Gas
14.0
Convection Wattage
2500W (Main Oven); 1500W (Companion Oven)
Bake/Broil Wattage - Main Oven
2700/4000W
Griddle BTU Rating (000's/BTU) - LP Gas
16.0
Griddle BTU Rating (000's/BTU) - Natural Gas
18.0
Bake/Broil Wattage - Companion Oven
1600/2750W
Grill BTU Rating (000's/BTU) - Natural Gas
14.0
Hertz
60

warranty

Parts Warranty
Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details

accessories

Air Fry Basket
Optional- JXAFTRAY1VSS
48" Monogram Knob Kit
ZXPR48KKTSS (SS, qty. 11)
Optional Backguard
12" stainless steel backsplash (UX12BS48PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
High Altitude Kit
Natural Gas: WB28X39726; LP: WB28X39727
Reversible Griddle/Grill Accessory
UXPRRGG
Multi Ring Burner Caps (Brass)
Included
LP Conversion Kit
Included
Multi Ring Burner Caps (Black)
Included

weights & dimensions

Net Weight
576 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Cabinet Width
48 in
Approximate Shipping Weight
672 lb
Overall Width
47.875 in
Overall Height
35.25 in
Overall Depth
28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height With Legs Retracted
35.25 in

features

Cooking System
Reverse Air Convection True European Convection
Cleaning Time
3-5 Hours (Both Ovens)
Ignition System
Electronic w/Auto Reignition
Oven Control Features
12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Chef Connect Cook Time C(degree) or F(degree) Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Sabbath Mode Self & Steam Clean Modes Timer WiFi Connect
Oven Rack Features
3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension
Convection Roasting Rack
Yes
Broiler Pan and Grid
2
Oven Cleaning Type
Self-Clean (Both Ovens) Steam Clean (Both Ovens)
Griddle
18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled
Connected Capabilities
Amazon Alexa Bluetooth Fresco Google Home Hestan Cue IFTTT Innit Sonos The Google Assistant
Product Type
Professional Range
140 Deg. Simmer Burner
All Burners - Adjustable
Cooktop Type
4 Burners Griddle Grill
Fuel Type
Dual Fuel (with natural gas)
Indicator Lights
Burner "On"
Short Description
48" Pro Range - Dual Fuel with 4 Burners, Grill and Griddle
Interior Oven Light
3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven)
WiFi Connect
Built-In
Extra Low Simmer
All Burners - Adjustable
Cooktop Burner Grate Features
Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Control Type
7" Full-Color Touch LCD Screen Digital Temperature Display with Timer Display (Both Ovens)
Lighting
Customizable LED Bullnose and Knob Accent Lighting
Adjustable Ceramic IR Grill
Yes
Collection
Statement
Cooking Technology
Convection
Oven Features
4-Pass Bake Element (Everyday Oven) 4-Pass Broil Element (Everyday Oven) 8-Pass Bake Element 8-Pass Broil Element Hidden Bake
Oven Cooking Modes
Convection Bake Multi-Rack (Both Ovens) Convection Broil Hi/Lo (Both Ovens) Convection Roast (Both Ovens) No-Preheat Air Frying (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens)
Cooktop Burner Type
2 Sealed, Dual Flame Stacked 2 Sealed, Dual Flame Stacked (Removable Brass Accents) Front Right TrueTemp(TM) Burner
Grill
14,000-BTU Cast-Iron Reversible Grill Grate
Removable Grease Trough
(2) Beneath Grill and Griddle
Cooktop Surface
Porcelain-Enamel
Stainless Steel Grill / Griddle Covers
2
Oven Rack Positions (Single or Upper/Lower)
5 / 4
Self-Clean Oven Door Lock
Automatic
Built-In WiFi, Powered by SmartHQ(TM) app
Better When Connected
Industry Exclusive-TrueTemp(TM) Burner
Versatile Gas Burner Configuration
Solid Brass Burners
3-Piece Grates with Reversible Wok Feature
Hot Air Fry
WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Chef Connect
Industry Exclusive-Custom Color LED Accent Lighting
Ring-Lit Knobs
Solid Brass Blades on Precision Machined Knobs
Seamless Stainless Top Frame
5 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
Multi Ring Burner Caps (Black)
Included

GS1

GTIN
00084691851295
EAN
0084691851295
UPC
084691851295

miscellaneous

Net Weight
576 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Cabinet Width
48 in
Approximate Shipping Weight
672 lb
Overall Width
47.875 in
Overall Height
35.25 in
Overall Depth
28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height With Legs Retracted
35.25 in
