Monogram 48" Freestanding Dual Fuel Range, 8.3 cu. ft. Capacity in Stainless Steel

SKU: ZDP484NGPSS
  • Fuel Type: Dual Fuel
  • Type: Freestanding
  • Width: 47.88"
  • Height: 35.25"
  • Depth: 28.25"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: No
  • Total Capacity: 8.25 cu. ft.
  • Cooktop Type: Continuous Grates
  • Downdraft Ventilation: No
  • Burner Type: Sealed
  • Self-Clean: Yes
  • Convection: Yes
  • Hidden Bake Element: No
  • Proof Mode: Yes
  • Number of Burners: 4
  • Ignition Type: ELECTRONIC
  • Hood Recommended: Yes
  • Oven Capacity: 5.75 cu. ft.
Monogram |Authorized Dealer
Pre-Order

color: Stainless Steel

Monogram ZDP484NGPSS
  • Ceramic-infrared grill
  • LED task lights
  • Sealed, dual-flame stacked burners
  • Monogram professional oven system
  • Star-K certification
Learn More

PRODUCT DESCRIPTION

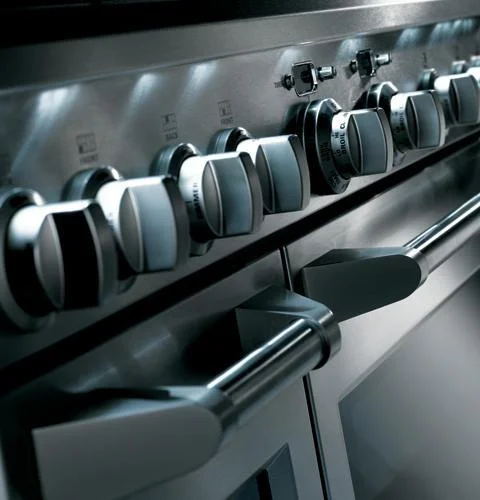

Authentic professional appearance

Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles

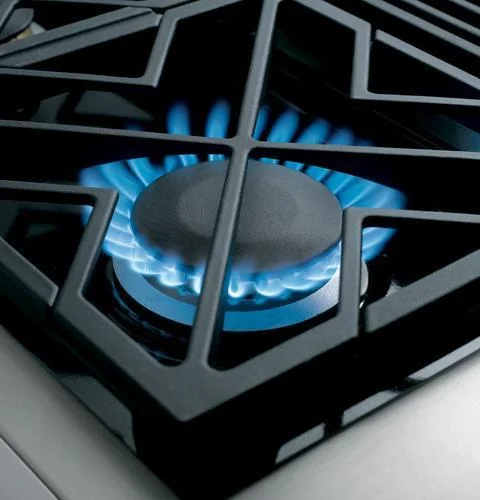

Sealed, dual-flame stacked burners

Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU

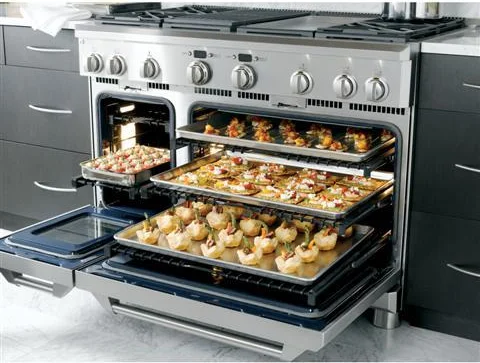

Monogram professional oven system

Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results

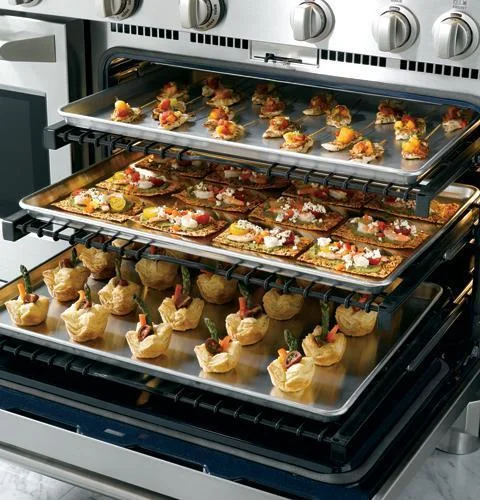

Heavy-duty, full-extension racks

Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle

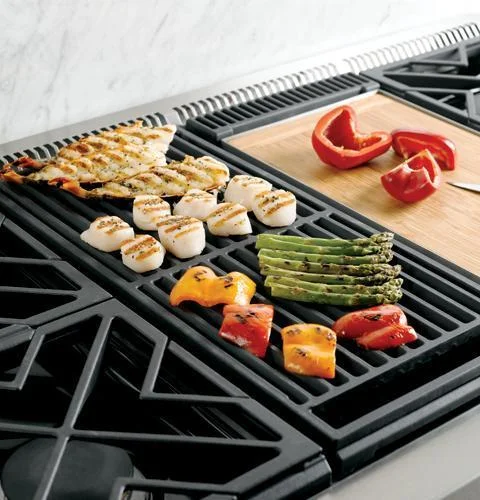

Ceramic-infrared grill

has 14,000 BTUs* of adjustable heat; The cooking grate is grooved on one side to create sear marks and rounded on the other for delicate foods

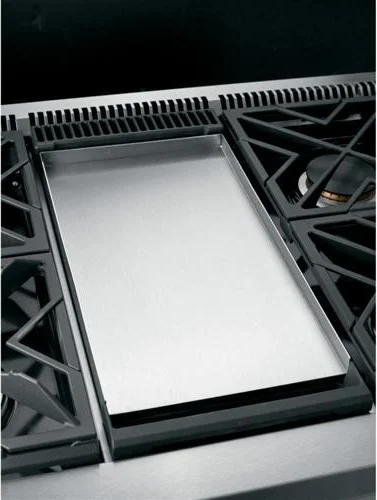

Stainless steel and aluminum-clad griddle

Offers 18,000 BTUs* of cooking power, allowing fast and consistent heating across the entire cooking surface

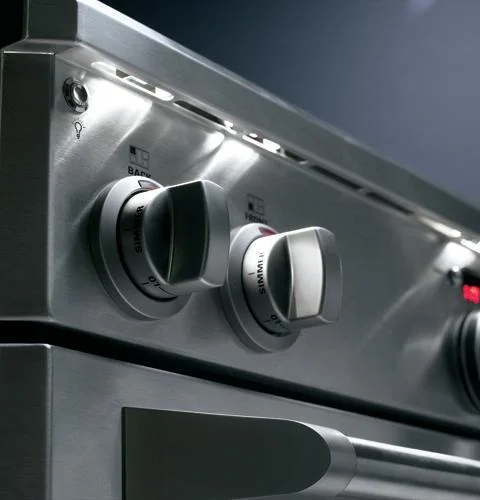

LED task lights

Below the bullnose, provide a functional and theatrical touch


Star-K certification

Allows Monogram ranges to operate in Sabbath mode

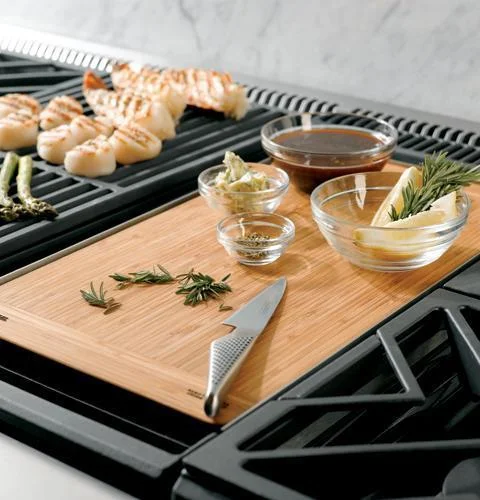

A bamboo cutting board

Is included


Optional full-width stainless steel toekick

Is included with the range

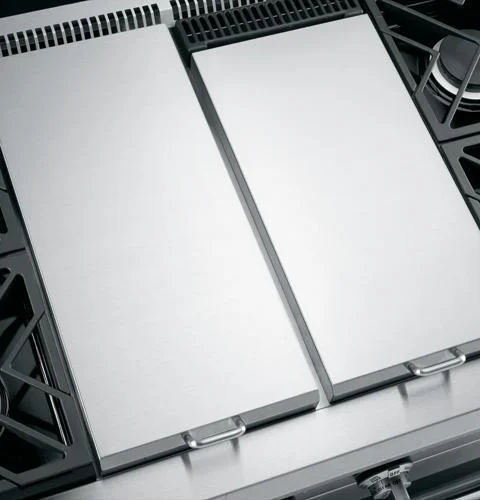

Stainless steel grill/griddle covers

Are included with the range

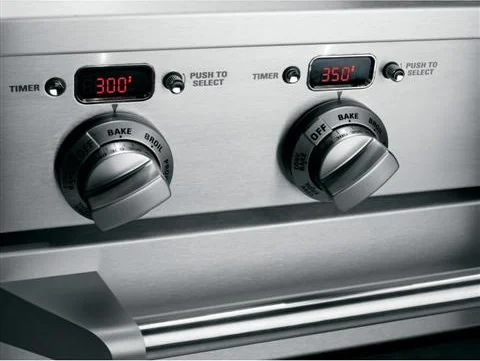

Large temperature and time displays

Make it easy to monitor cooking progress

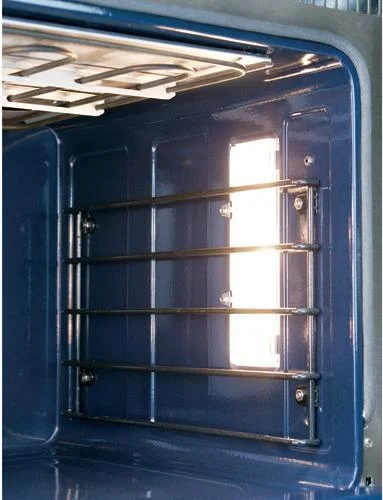

Halogen light columns

Provide a clear view, regardless of rack position

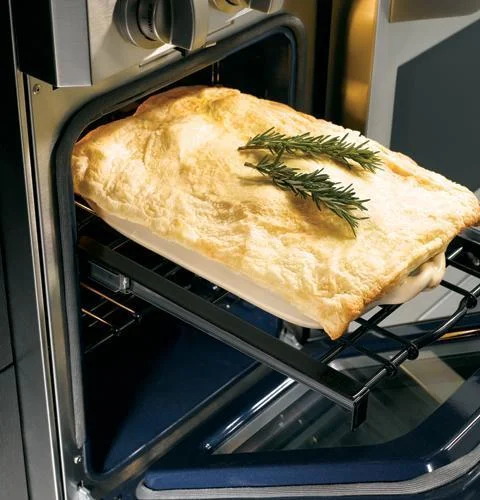

Everyday oven

Is just the right size for 9" x 13" casserole dishes


A caterer's oven

Is uniquely sized to accommodate three full-size sheet trays

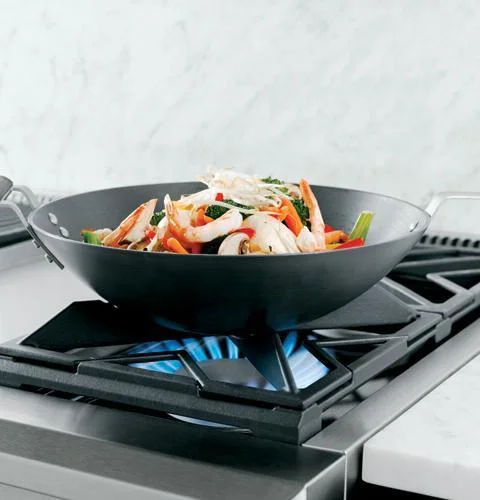

Reversible burner grates

Flat on one side and uniquely contoured on the other to accommodate round-bottom woks


Electronic ignition with automatic reignition

Ensures a continuous flame and reignites automatically if accidentally extinguished

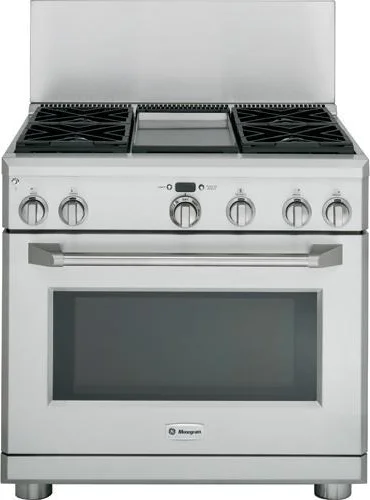

Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes

Are available

Features

Ceramic-infrared grill

Ceramic-infrared grill

has 14,000 BTUs* of adjustable heat; The cooking grate is grooved on one side to create sear marks and rounded on the other for delicate foods

LED task lights

LED task lights

Below the bullnose, provide a functional and theatrical touch

Sealed, dual-flame stacked burners

Sealed, dual-flame stacked burners

Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU

Monogram professional oven system

Monogram professional oven system

Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results

Star-K certification

Star-K certification

Allows Monogram ranges to operate in Sabbath mode

Stainless steel and aluminum-clad griddle

Stainless steel and aluminum-clad griddle

Offers 18,000 BTUs* of cooking power, allowing fast and consistent heating across the entire cooking surface

Authentic professional appearance

Authentic professional appearance

Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles

Heavy-duty, full-extension racks

Heavy-duty, full-extension racks

Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle

Everyday oven

Everyday oven

Electronic ignition with automatic reignition

Electronic ignition with automatic reignition

Ensures a continuous flame and reignites automatically if accidentally extinguished

Stainless steel grill/griddle covers

Stainless steel grill/griddle covers

Are included with the range

Reversible burner grates

Reversible burner grates

Flat on one side and uniquely contoured on the other to accommodate round-bottom woks

Halogen light columns

Halogen light columns

Provide a clear view, regardless of rack position

Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes

Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes

Are available

Large temperature and time displays

Large temperature and time displays

Make it easy to monitor cooking progress

Optional full-width stainless steel toekick

Optional full-width stainless steel toekick

Is included with the range

A bamboo cutting board

A bamboo cutting board

Is included

Specifications

capacity

Total Capacity (cubic feet)
8.25
Capacity (Cu. Ft.)
5.75 Caterer Oven / 2.5 Everyday Oven

appearance

Control Knobs
Diecast Metallic (Included)
Installation
Semi-Flush Installation Capable
Design Style
Professional Stainless Steel
Color Appearance
Stainless Steel

power / ratings

Grill BTU Rating (000's/BTU) - LP Gas
14.0
Top Burner BTU Rating - LP (000's BTU's)
(4) 15.0, 140 Degree simmer
Grill BTU Rating (000's/BTU) - Natural Gas
14.0
Griddle BTU Rating (000's/BTU) - Natural Gas
18.0
Griddle BTU Rating (000's/BTU) - LP Gas
16.0
Electrical Requirements
240VAC; 50A
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(4) 18.0, 140 Degree simmer

warranty

Warranty Notes
See written warranty for full details
Parts Warranty
Limited 2-year entire applianceLimited 5-year gas surface burnersLimited lifetime of oven racks
Labor Warranty
Limited 2-year entire appliance

accessories

Optional Backguard
30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
Griddle
18,000-BTUStainless Steel and Aluminum CladThermostatically Controlled
LP Conversion Kit
Included
Factory-installed island backguard
yes
Grill
14,000-BTUCast-Iron Reversible Grill Grate
Wok Accessory
ZXWK22G

weights & dimensions

Net Weight
576.0
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Overall Depth
28.25
Height w/Legs Extended - Maximum Height
36.75
Height With Legs Retracted
35.25
Overall Width
47.875
Overall Height
35.25
Approximate Shipping Weight
672.0
Cabinet Width
48.0

features

Oven Cleaning Type
Self-Clean (Both Ovens)
Cooktop Burner Type
4 Sealed, Dual Flame Stacked
Cooktop Burner Grate Features
Continuous GratesPorcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooking System
Reverse Air ConvectionTrue European Convection
Oven Rack Features
3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven)4 Rack Positions (Everyday Oven)5 Rack Positions (Caterer Oven)Full-Extension
Fuel Type
Dual Fuel (with natural gas)
Cleaning Time
5 Hours (Both Ovens)
Indicator Lights
Burner "On"
Configuration
4 Burners; Grill; Griddle
Lighting
LED Bullnose Task Lighting
Self-Clean Oven Door Lock
Automatic
Control Type
Digital Temperature Displaywith Timer Display (Both Ovens)
Oven Cooking Modes
Convection Bake (Both Ovens)Convection Broil (Both Ovens)Convection Roast (Both Ovens)
Convection Roasting Rack
Yes
Ignition System
Electronic w/Auto Reignition
Oven Control Features
Automatic Oven Meat Probe (Both Ovens)Certified Sabbath ModeDelay Clean Option (Both Ovens)Proof Mode (Both Ovens)
Stainless Steel Grill / Griddle Covers
2
Interior Oven Light
3 Halogen Lamps (Everyday Oven)6 Halogen Lamps (Caterer Oven)
Cooktop Type
Continuous Grates
Adjustable Ceramic IR Grill
Yes
Broiler Pan and Grid
2
140 Deg. Simmer Burner
All Burners - Adjustable
Authentic professional appearance
Sealed, dual-flame stacked burners
Monogram professional oven system
Heavy-duty, full-extension racks
Ceramic-infrared grill
Stainless steel and aluminum-clad griddle
LED task lights
Star-K certification
A bamboo cutting board
Optional full-width stainless steel toekick
Stainless steel grill/griddle covers
Large temperature and time displays
Halogen light columns
Everyday oven
Reversible burner grates
Electronic ignition with automatic reignition
Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes

miscellaneous

Net Weight
576.0
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Overall Depth
28.25
Height w/Legs Extended - Maximum Height
36.75
Height With Legs Retracted
35.25
Overall Width
47.875
Overall Height
35.25
Approximate Shipping Weight
672.0
Cabinet Width
48.0
