KitchenAid 42" Built-In Bottom Freezer Built-In Refrigerator, 24.2 cu. ft. Capacity in Panel Ready

Name: KitchenAid KBFN542TPA 42" Built-In Bottom Freezer Built-In Refrigerator, 24.2 cu. ft. Capacity
Brand: KitchenAid
SKU: KBFN542TPA
Price: 9629.00 USD
Availability: InStock

SKU: KBFN542TPA

0 Questions & 0 Answers

Type: Built-In
Style: Bottom Freezer/Built-In
Width: 41.75"
Height: 83.13"
Depth: 24.00"
Wi-Fi Connected: No
Sabbath Mode: Yes
ADA Compliant: No
Defrost: Automatic
Door Opening Direction: N/A
Freezer Capacity: 6.45 cu. ft.
Weight: 551.56 lbs
Icemaker: Yes
Dispenser: No
Total Capacity: 24.20 cu. ft.
Refrigerator Capacity: 24.1 cu. ft.
Number of Shelves: 4

KitchenAid |Authorized Dealer

Pre-Order

$9,629.00

$10,699.99 Save$1,070.99

$240.73

)

color: Panel Ready

SatinGlide(R) Drawer System

Estimates for:

Protect Your Item

2 Year $215.99

3 Year $335.99

4 Year $389.99

5 Year $489.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

This Built-In French Door Bottom Mount Refrigerator elevates your style with an Aesthetic Panel exterior. Multiple Installation Options allow you to choose between flush installation for an integrated look or proud for a prominent look. Signature Platinum Interior wows with metallic accents. Preserva(R) Food Care System helps keep food fresh thanks to independent cooling systems.

Features

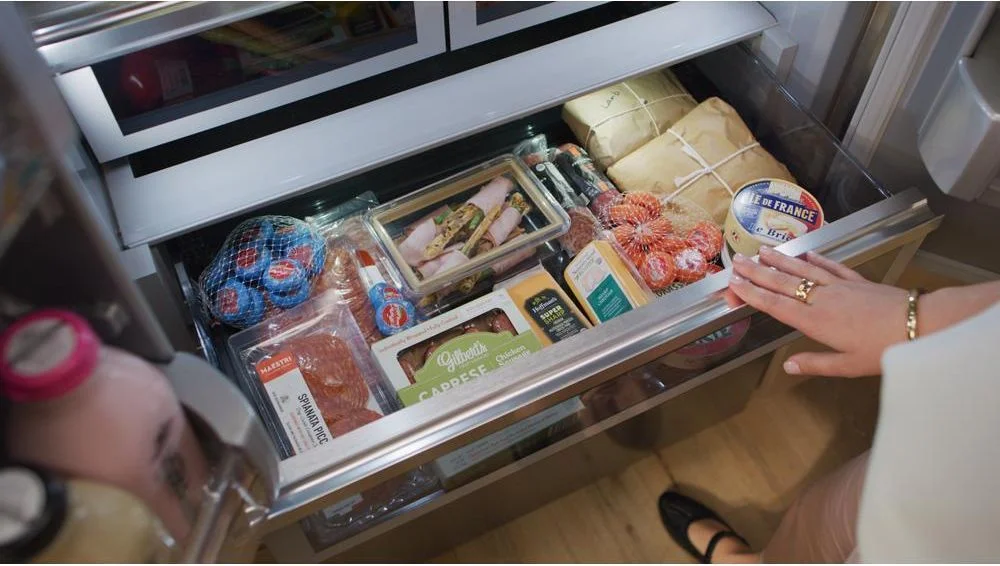

SatinGlide(R) Drawer System

adds a smooth experience to the crisper drawers. Its ball-bearing rollers enhance the opening and closing experience every time, whether it is nearly empty or fully loaded.

certifications

5 items

Ada Compliant

Cee Tier Rating

Tier I

Energy Rating (kwh/year)

633

Prop65

Yes

controls

8 items

Automatic Defrost

Yes

Control Location

Interior Up Front

Cooling Type

Dual Evaporator

Door Ajar/open Alarm

Yes

LCD Touch Screen

Max Cool/fast Cool

Yes

Refrigerator Max Cool

Yes

Sabbath Mode

Yes

details

8 items

Advance Foam Insulation

99.9% lower Global Warming Potential and Better Energy Performance

Door Opening Direction

N/A

Door Style Configuration

French Door

Garage Ready

Installation Configuration

Built-In

Installation Option

Built-In

Refrigeration Configuration

Refrigerator

Refrigerator Type

French Door

dimensions

21 items

Width With Doors Closed

41.75

Product Height

83.125

Height To Top of Door Hinge

76.188

Carton Height

86.57

Gross Weight

612.85

Height To Top of Cabinet

83.125

Carton Width

45.74

Total Refrigerator Capacity Volume

24.1

Product Depth

24.0

Depth With Door Open 90 Degree

Depth Excluding Doors

22.375

Cabinet Width

Depth Closed Excluding Handles

Carton Depth

32.04

Cutout Width

Freezer Capacity Volume

6.45

Refrigerator Capacity Volume

17.6

Net Weight

551.56

Product Width

41.75

Height To Top of Door Trim

76.688

Width Doors Open 90 Degrees

50.25

exterior details

7 items

Cabinet Color

Grey

Cabinet Finish

Smooth

Door Color

Panel Ready

Door Finish

Smooth

Door Style

Flat

Hidden Hinge

Yes

Reversible Door

filter details

7 items

Air Filter Indicator/reset

Air Filter Part Number

W10311524

Fresh Flow Air Filter Included

Yes

Produce Preserver

Water Filter Indicator/reset

Yes

Water Filter Location

Exterior

Water Filter Part Number

EDR3RXD1

freezer details

7 items

Defrost Type

Automatic Defrost

Freezer Door Type

Pull-Out

Freezer Drawer/basket

1 Full Width Lower Metal; 1 Half Width Upper Plastic

Freezer Lighting

LED

Freezer Number of Shelves

Freezer Shelves

None

Freezer Type

Slide-Out Door 2 Tier

general

1 item

Energy Star(r) Qualified

icemaker details

3 items

Icemaker

Factory Installed

Icemaker Location

Freezer

Types of Ice

Cubed

refrigerator details

8 items

Conventional Shelves

4 Adjustable Full-Width Glass

Liner Finish

Platinum

Non Climate Control Drawers

4 Half Width

Number of Doors

Number of Interior Shelves

Refrigerator Door Bins

2 Half-Width Gallon; 4 Adjustable Half-Width

Refrigerator Lighting

LED

Spill-proof Glass Shelves

4 Adjustable Half Width

GS1

3 items

GTIN

00883049943237

EAN

0883049943237

UPC

883049943237

features

1 item

SatinGlide(R) Drawer System

Expired Rebates

KitchenAid: Craft Your Dream Kitchen- Save up to $3,000

Offer Expires: 4/1/2026 to 4/30/2026 | Must be postmarked by: 6/30/2026

CRAFT YOUR DREAM KITCHEN PROMOTION + Bonus offers (additional savings opportunities)

Download Rebate Form

Documents

Warranty

PDF

Energy Guide

PDF

Owners Manual

PDF

FIT System Guarantee

PDF

Installation Instruction

PDF
