Frigidaire 24" Fully Integrated Built-In Dishwasher, 14 Place Setting Capacity in Panel Ready

Name: Frigidaire FDSR4501AP 24" Fully Integrated Built-In Dishwasher, 14 Place Setting Capacity
Brand: Frigidaire
SKU: FDSR4501AP
Price: 799.00 USD
Availability: InStock

SKU: FDSR4501AP

0 Questions & 0 Answers

Energy Star Rated: yes
Width: 24.00"
Height: 33.75"
Weight: 85.00 lbs
Depth: 24.25"
ADA Compliant: No
Style: Fully Integrated
Wi-Fi Connected: No
Sabbath Mode: No
Stainless Steel Tub: Yes
Fully Integrated Controls: Yes
Tall Tub: Yes
Cycles Count: 5

Frigidaire |Authorized Dealer

Out of Stock | More on the way 6/8/2026

$799.00

$1,049.99 Save$250.99

$19.98

)

color: Panel Ready

Estimates for:

Protect Your Item

2 Year $75.99

3 Year $115.99

4 Year $143.99

5 Year $163.99

Decline

30-Days Free Returns or Exchanges

GET READY FOR INSTALLATION

PRODUCT DESCRIPTION

The Frigidaire 24" Stainless Steel Tub Built-In Panel Ready Dishwasher effortlessly blends into your kitchen by letting you attach a separately sold custom panel that matches your cabinets. Plus, it offers better water coverage from our BladeSpray Arm, so you get clean dishes, pans and utensils corner to corner. Loading and unloading is easier with our three level rack dishwasher. And you can expect your dishes to be dry the first time with our EvenDry(TM) system.

dishwasher

18 items

Detergent Dispenser

Yes

Filter Material

Stainless Steel

Filter Trap

Removable

Filtered Water

100 %

Hard Food Disposer or Filtration

Yes

Motor Speeds

Multi-Speed

Place Setting Capacity

Rinse Aid Dispenser

Yes

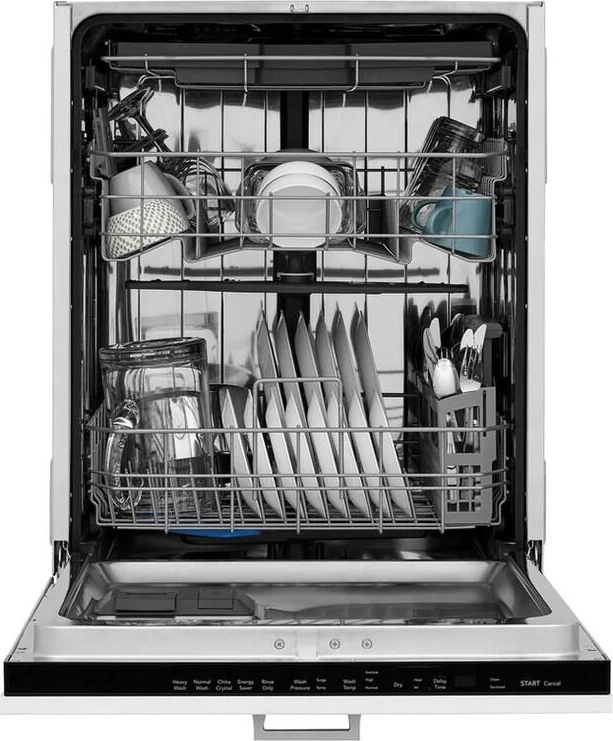

Smart Soil Sensor

Yes

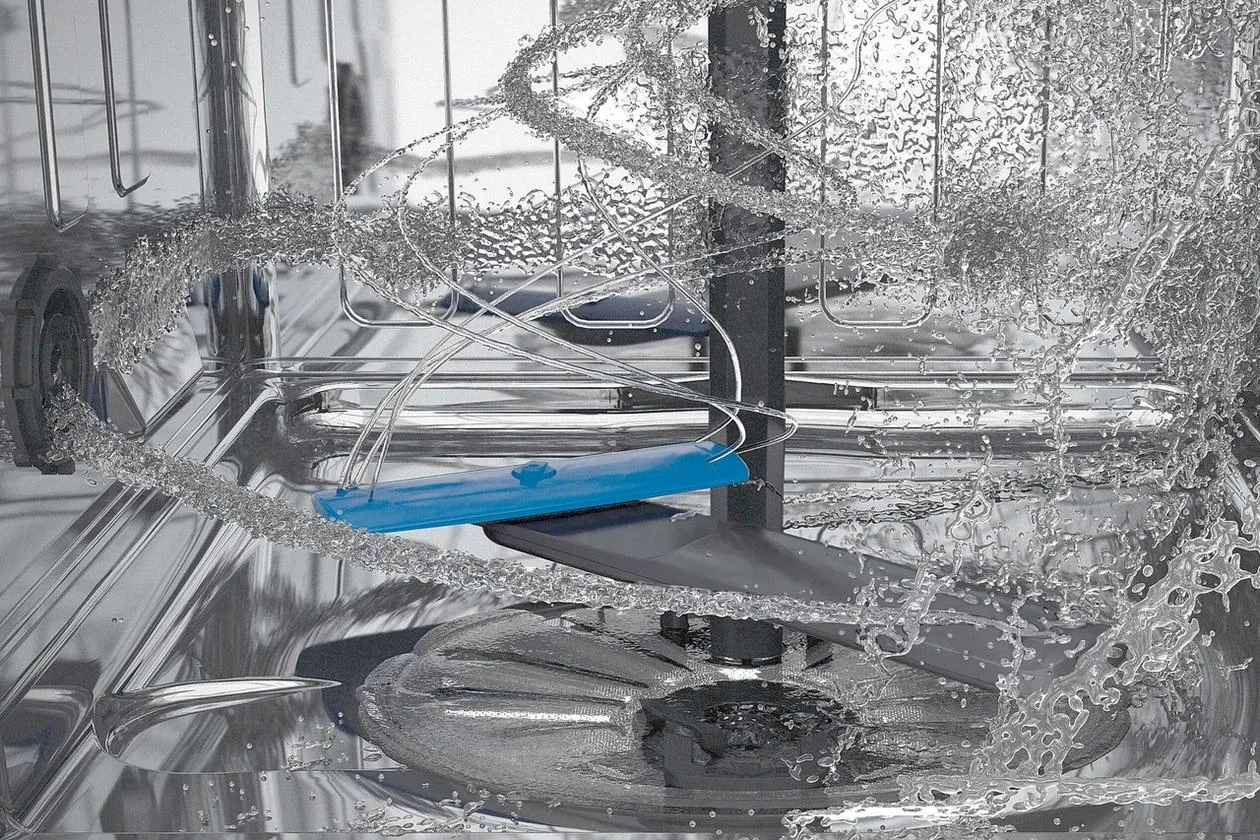

Lower Spray Arm

Blade

Middle Spray Arm

Bi-Beam

Upper Spray Arm

Spray Arm

Tub Color

Stainless Steel

Tub Design

Tall Tub

Tub Material

Stainless Steel

Wash Levels

Wash System

Direct Feed

Water Pressure

120 psi

dishwasher cycles

6 items

China Crystal

Yes

Energy Saver

Yes

Heavy

Yes

Normal

Yes

Number of Cycles

Rinse Only

Yes

dishwasher options

9 items

Dry - Air

Yes

Dry - Heat

Yes

Dry - Max

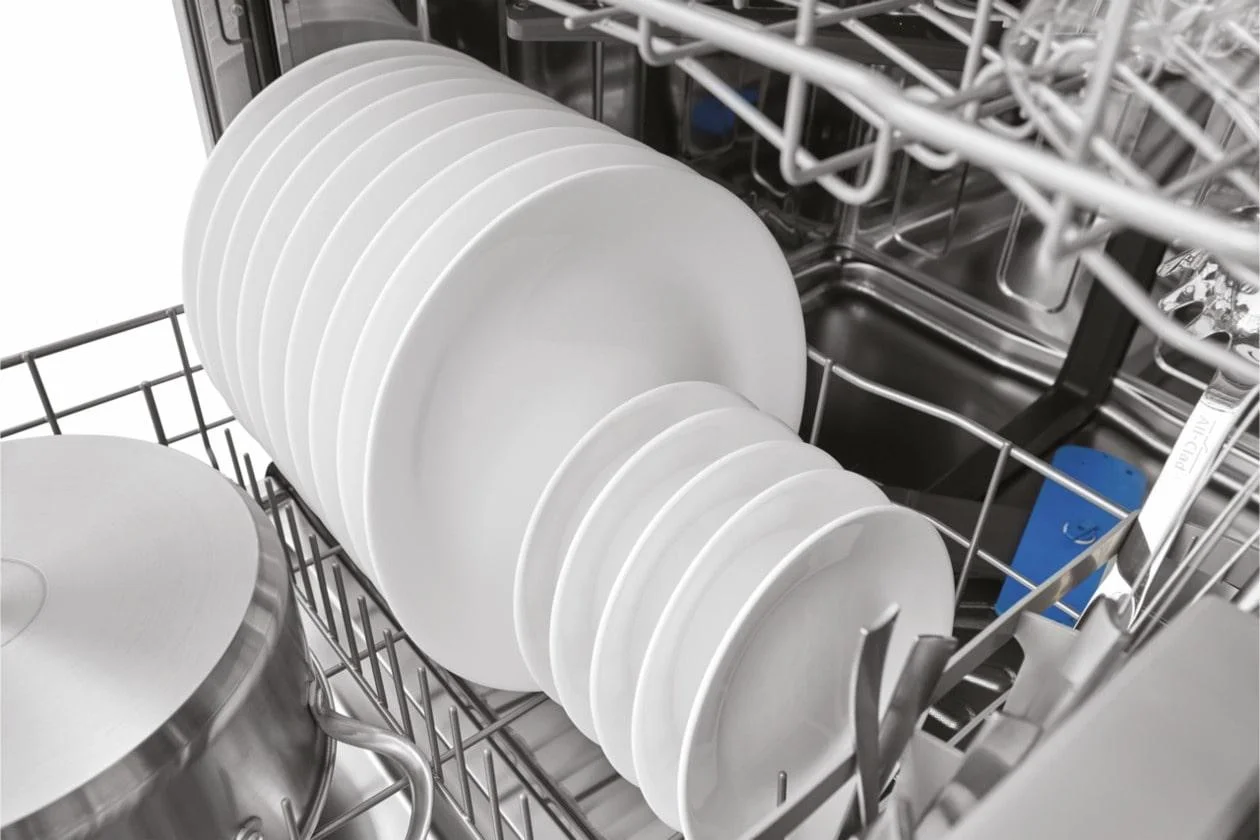

Drying System

Even Dry

High Temperature

Start/Cancel

Yes

Washing Temperature - High

Yes

Washing Temperature - Normal

Yes

Washing Temperature - Sanitize

Yes

lower rack

4 items

Number of Silverware Basket

Number of Silverware Basket Lids

Rack Coating

Nylon

Rack Type

Deluxe

upper rack

5 items

Cup Shelf

Yes

Rack Coating

Nylon

Rack Type

Deluxe

Stemware Holder

Yes

Targeted Wash Zone

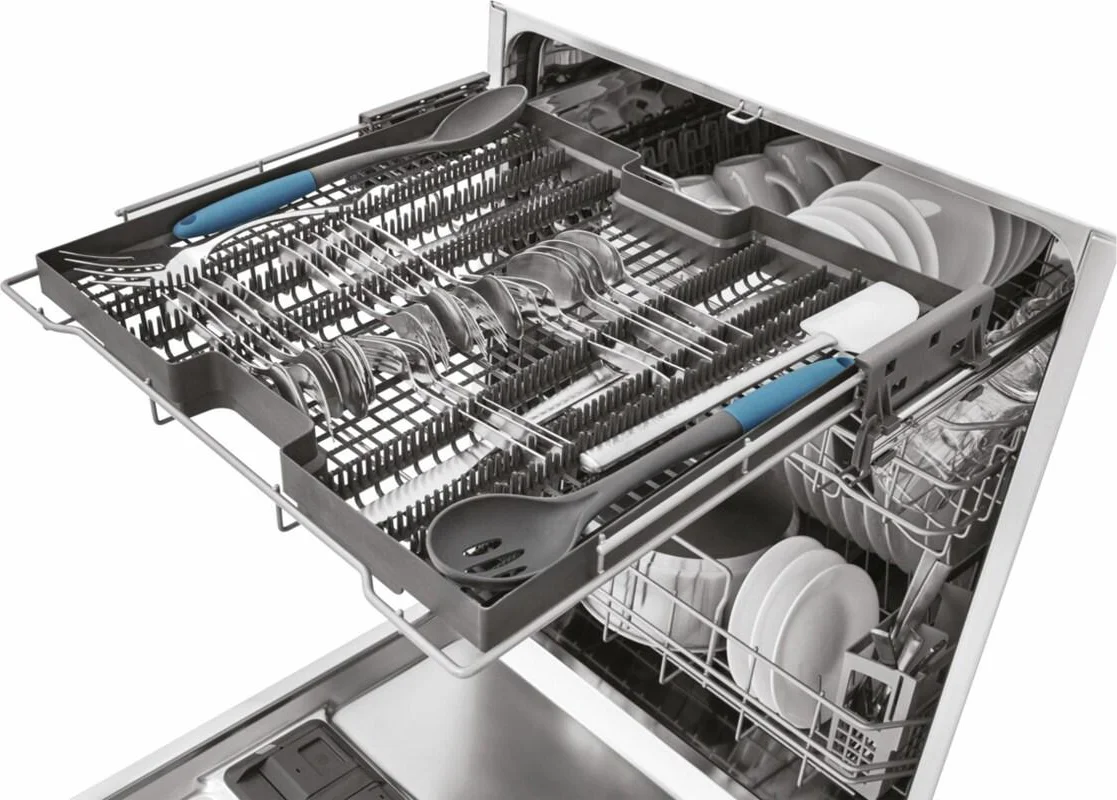

third level rack

1 item

Third Level Rack

Yes

general specifications

6 items

Sound Level

49 dBA

Annual Energy

240 kWh

Product Weight

85 lbs

Prop 65 Label

Warranty - Labor

1 Year

Warranty - Parts

1 Year

controls

3 items

Control Location

Top

Delay Start Hours

1-24 Hours

Digital Display

exterior

1 item

Panel Ready

Yes

dimensions and volume

5 items

Minimum Height

33 3/4"

Maximum Height

35 3/4"

Width

24"

Depth

24 1/4"

Depth With Door Open

50 1/4"

panel installation information

6 items

Maximum Height

29 7/8"

Width

23 7/8"

Minimum Thickness

5/8"

Maximum Thickness

7/8"

Minimum Weight

4.4 lbs

Maximum Weight

17.6 lbs

electrical specifications

2 items

Amps @ 120 Volts

15 Amps

Voltage Rating

120 V

installation

1 item

Number of Leveling Legs

certifications and approvals

7 items

ADA Compliant

CEE Tier

Tier 1

cUL Listed

Yes

ENERGY STAR Certified

Yes

ETL Listed

Yes

NSF Certified

Yes

UL Listed

Yes

general specification

5 items

Product Line

Dishwasher

Power Type

Electric 120v

Installation Type

Built-In

Factory

Solaro

Color

Panel

GS1

3 items

GTIN

00012505116452

EAN

0012505116452

UPC

012505116452

Documents

Right to Repair (en)

PDF

Energy Guide (en, fr)

PDF

Complete Owner's Guide (en)

PDF

Complete Owner's Guide (en)

PDF

Propietario completa Gu a (es)

PDF

Droit la r(eback)paration (fr)

PDF

Guide d'utilisation complet (fr)

PDF

Guide d'utilisation complet (fr)

PDF

Product Specifications Sheet (en)

PDF

Installation Instructions (en, fr, es)

PDF

Canadian Product Specifications Sheet (en)

PDF

Feuille de sp(eback)cifications du produit (fr)

PDF
