WARRANTY
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)
45.40
CARTON LENGHT (mm)
1359.50
CARTON HEIGHT (mm)
1013.50
SHIPPING WEIGHT (lb)
100.09
COUNTRY OF MANUFACTURE
MX
INTENDED APPROVED USE
Residential use
Type of Ventilation
Non-Vented
HOODS FEATURES
Hush system, Heat guard, Grease collectors, Seamless look, Elica easy mounting, Professional performance, Top or rear outlet,
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Round 6" / Round 8"
EXHAUST LOCATION
Top Only
RECTANGULAR DUCTH HEIGHT
NA
RECTANGULAR DUCT WIDTH
NA
Round duct diameter
6"/8"
ELECTRIC (VOLTS)
120 V/60 Hz
BLOWER TYPE

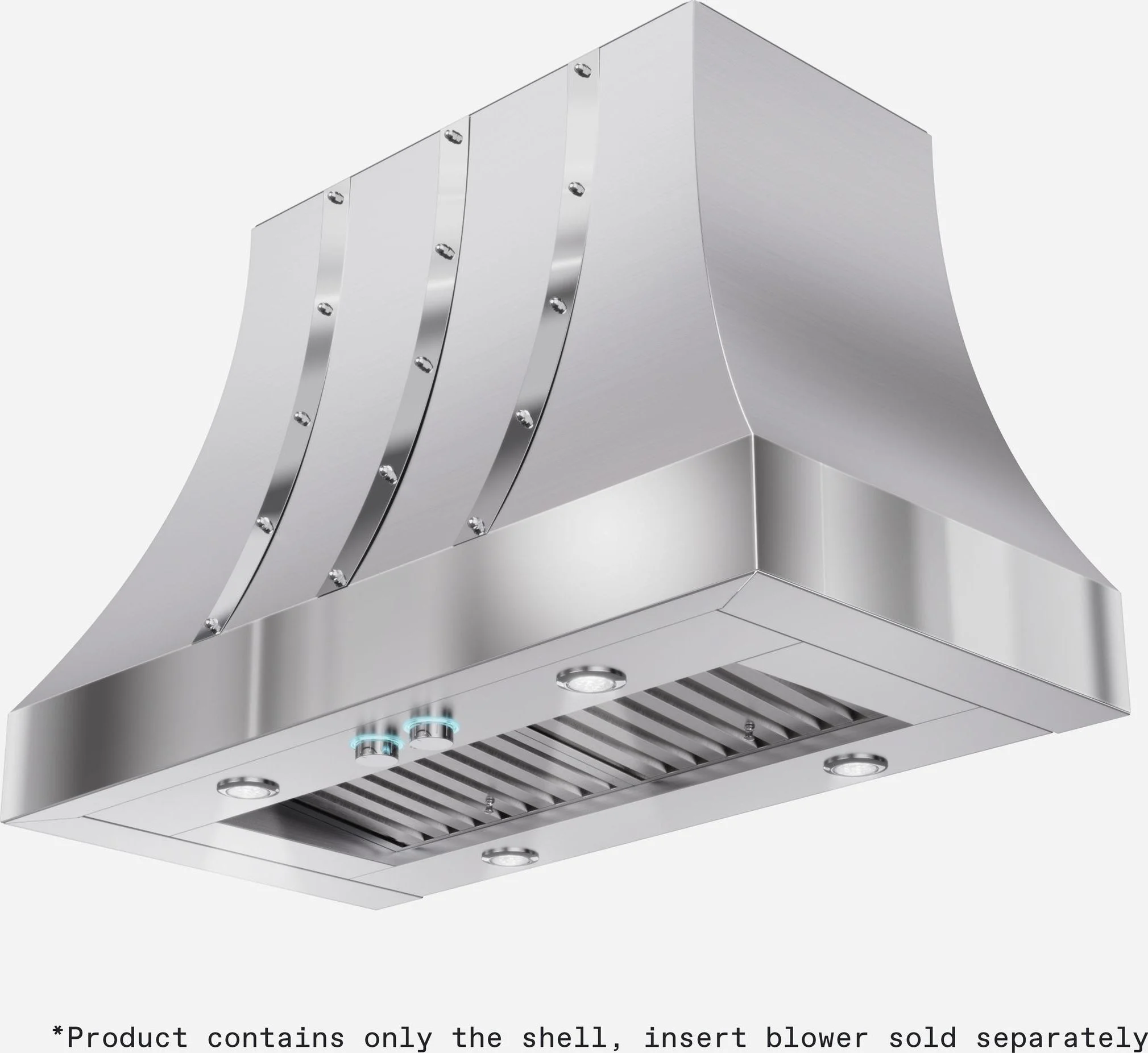

Needs Pairing with Arezzo Insert
CONTROL TYPE
Fully Retractable Rotating Knobs w/ Blue Backlighting
RECIRCULATION KIT NEEDED
NO
DIMENSIONS (CM)
120 x 61 x 79
DIMENSIONS (INCH)
48" x 24 x 30"
Minimum Overall Height - Top to Bottom
30"
Maximum Overall Height - Top to Bottom
30"
Overall Height - Top to Bottom
30"
Overall Width - Side to Side2
48"
Overall Depth - Front to Back
24
Min - Max Compatible Ceiling Height (Cover electronic cooking)
NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)
NA
Minimum Height Above Cooktop (ELECTRIC)
24
Minimum Height Above Cooktop (GAS)
30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
30 4/5"
Chimney Depth - Front to Back
17 7/32"
Chimney Height - Top to Bottom
24 1/4"
Long Life Recirculating Carbon Filter
NA
Recirculation (400 CFM) 2 round carbon filters
NA
Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters
NA
Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips
NA
Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters
NA
Recirculation (600 CFM) 2 round carbon filters
NA
Recirculation (600 CFM) 4 round carbon filters
NA
Recirculation (600 CFM) 6 round carbon filters
NA
Recirculation (600 CFM) 6 round Deflector
NA
Recirculation (1200 CFM) 4 round deflector
NA
Recirculation (1200 CFM) 4 round carbon filters
NA
Recirculation (1200 CFM) (8 round deflector)
NA
Long Chimney Ext/Chimney extension
NA
Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating)
NA
Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating)
NA
Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating)
NA
Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating)
NA
Long Chimney Extension(6 )
NA
Long Chimney Extension(11 )
NA
Long Chimney Extension(12 )
NA
Long Chimney Extension(13 )
NA
Long Chimney Extension (6 with grates)
NA
TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition
-
RECIRCULATION DUCT COVERS
NA
RECIRCULATION DEFLECTOR
NA
INLINE BLOWER SHELL KIT (600 CFM)
-
INLINE BLOWER SHELL KIT (1200 CFM)
NA
EXTERNAL BLOWER SHELL KIT
-
HIGH CEILING EXTENSION KIT
-
Duct cover extension 6
KIT0182783
Duct cover extension 18
KIT0182784
COMERCIAL USE APPROVED
NO
VENTILATION DIRECTION
HORIZONTAL
FITLER INDICATOR LIGHT
NO
