Dacor 48-inch Gas Rangetop With Built-in Griddle in Graphite Stainless

SKU: DTT48T963GMDA
2x Points
Free 2Y Warranty
Low-cost Install
  • Fuel Type: Gas
  • Width: 47.88"
  • Height: 8.00"
  • Weight: NaN lbs
  • Depth: NaN"
  • Type: Built-In
Dacor |Authorized Dealer
In Stock|Only 1 left

color: Graphite Stainless

Dacor DTT48T963GMDA
  • Simmersear™ Burners
  • Built-in Griddle
  • Illumina™ Knobs
  • Auto-connected Hood
  • Luxurious Finishes
Learn More

PRODUCT DESCRIPTION

Dacor rangetops offer refined looks and a visionary performance that come together perfectly with a lineup of features that ignite the imagination – turn up the heat on what’s possible.

Features

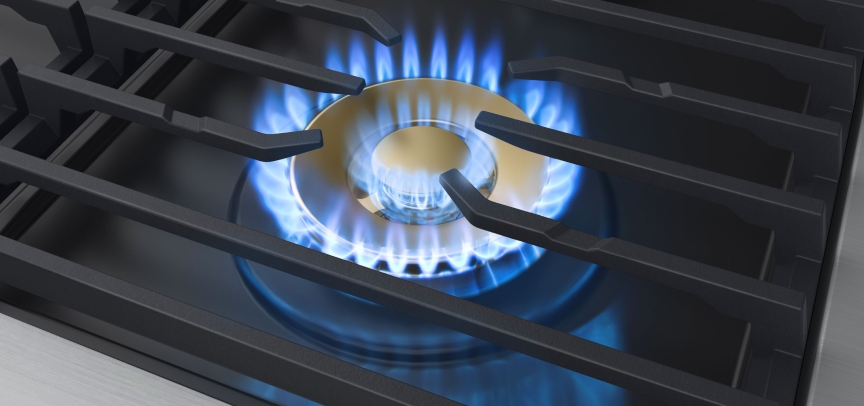

Simmersear™ Burners

Simmersear™ Burners

Cook delicious meals with ease and precision. Quickly boil water with 22,000 BTU of power or maintain a gentle simmer at 750 BTU with the all-brass, Dual Valve, Dual Ring Burner.

Built-in Griddle

Built-in Griddle

A 6 Pass, built-in 1,400W Griddle provides even heat distribution. And the scratch-resistant, cast-aluminum griddle is coated with a non-stick ceramic surface to keep your kitchen pristine.

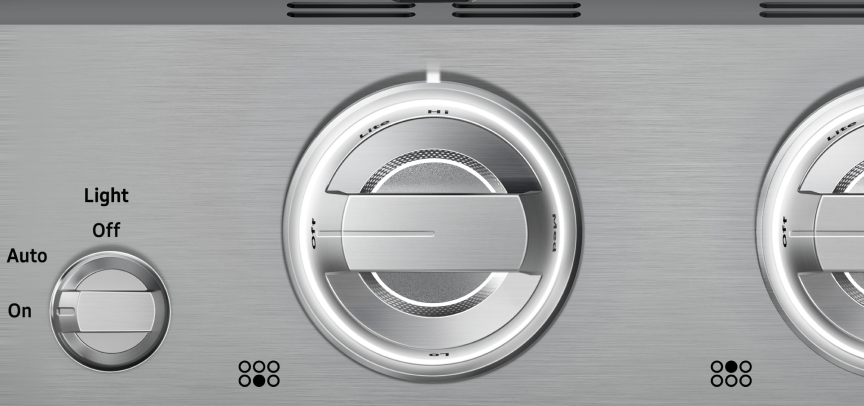

Illumina™ Knobs

Illumina™ Knobs

Elegance meets function with a Dacor rangetop, and no detail is overlooked. Glowing Illumina™ knobs shine and add a warm, welcoming glow to your kitchen.

Auto-connected Hood

Auto-connected Hood

Bluetooth and ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop. And with the use of a temperature sensor, ramps up the ventilation speed as necessary.

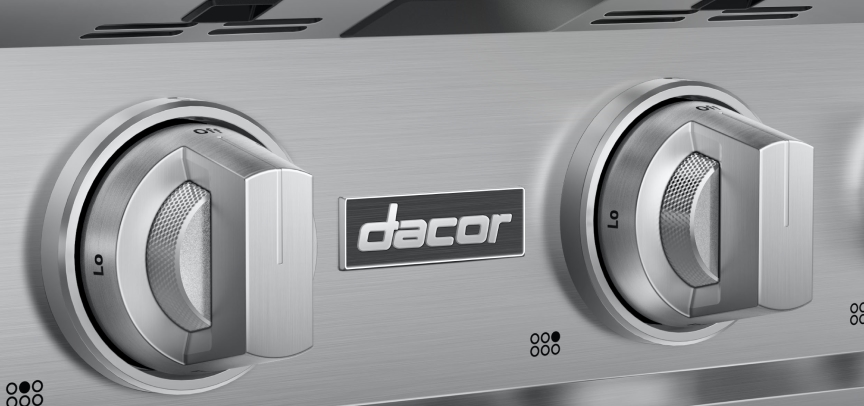

Luxurious Finishes

Luxurious Finishes

Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.

Smartthings Integration

Smartthings Integration

The SmartThings connected platform provides an exceptional foundation for an ever-growing ecosystem of smart connectivity. Preheat and check the oven temperature, the cooking status and the remaining time – all from the comfort of your smartphone.

Specifications

dimensions & weight

Width
47.88 in.
Height
8 in.
Length
27.88 in.
Weight
-

number of boxes, shipping dimensions, & shipping weight

Number of Boxes
1
Shipping Width
52.88 in.
Shipping Height
13 in.
Shipping Length
32.88 in.
Shipping Weight
-
Total of Shipping Weight
-
Source
Calculation

cubic feet measurement & dimensional weight

Cubic Feet Measurement
6.18 ft³
Dimensional Weight
76.81 lbs.
Total of Cubes
6.18 ft³
Total of Dimensional Weight
76.81 lbs.

overall dimensions

Width
47-7/8"
Height
8"
Depth
27-7/8"

burner configuration

Left Front
18,000 BTU
Left Rear
16,000 BTU
Center Front
22,000 BTU
Center Rear
9,000 BTU
Right Front
16,000 BTU
Right Rear
16,000 BTU

requirements

Electrical
120V, 60Hz, 15A

accessories

Burner Caps, Black
Yes
Burner Caps, Brass
Yes
Wok Ring
Yes

features

Simmersear™ Burners
Built-in Griddle
Illumina™ Knobs
Auto-connected Hood
Luxurious Finishes
Smartthings Integration

GS1

UPC
887276759982
