Cafe 24" Fully Integrated Built-In Dishwasher, 16 Place Setting Capacity in Stainless Steel

SKU: CDT828P2VS1
Limited Time Sale
  • Width: 23.75"
  • Height: 34.00"
  • Depth: 26.30"
  • Energy Star Rated: yes
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: No
  • Stainless Steel Tub: Yes
  • Fully Integrated Controls: Yes
  • Tall Tub: Yes
  • Decibel Level: 42.0 db
  • Cycles Count: 5
Cafe |Authorized Dealer
Out of Stock|More on the way 6/24/2025

$849.00

$1,249.00 Save$400.00
Sign in / Sign up to earn 849 points (
$21.23
)

color: Stainless Steel

Cafe CDT828P2VS1
  • Adjustable Middle Rack
  • CustomFit Basket
  • Middle and Lower Rack Fold-Down Tines
  • Favorites
  • Active Flood Protect
Learn More

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

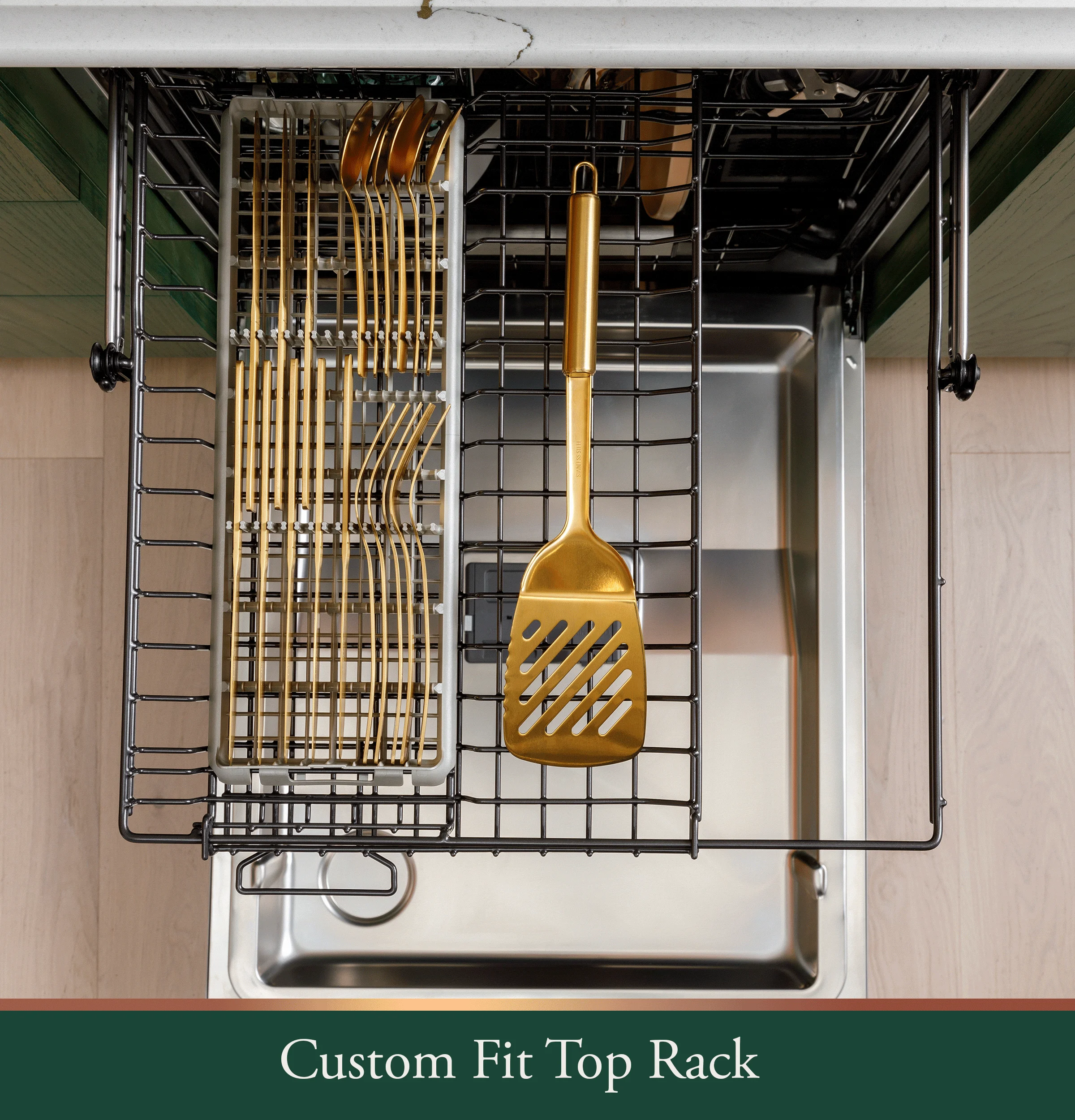

CustomFit Top Rack
Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.

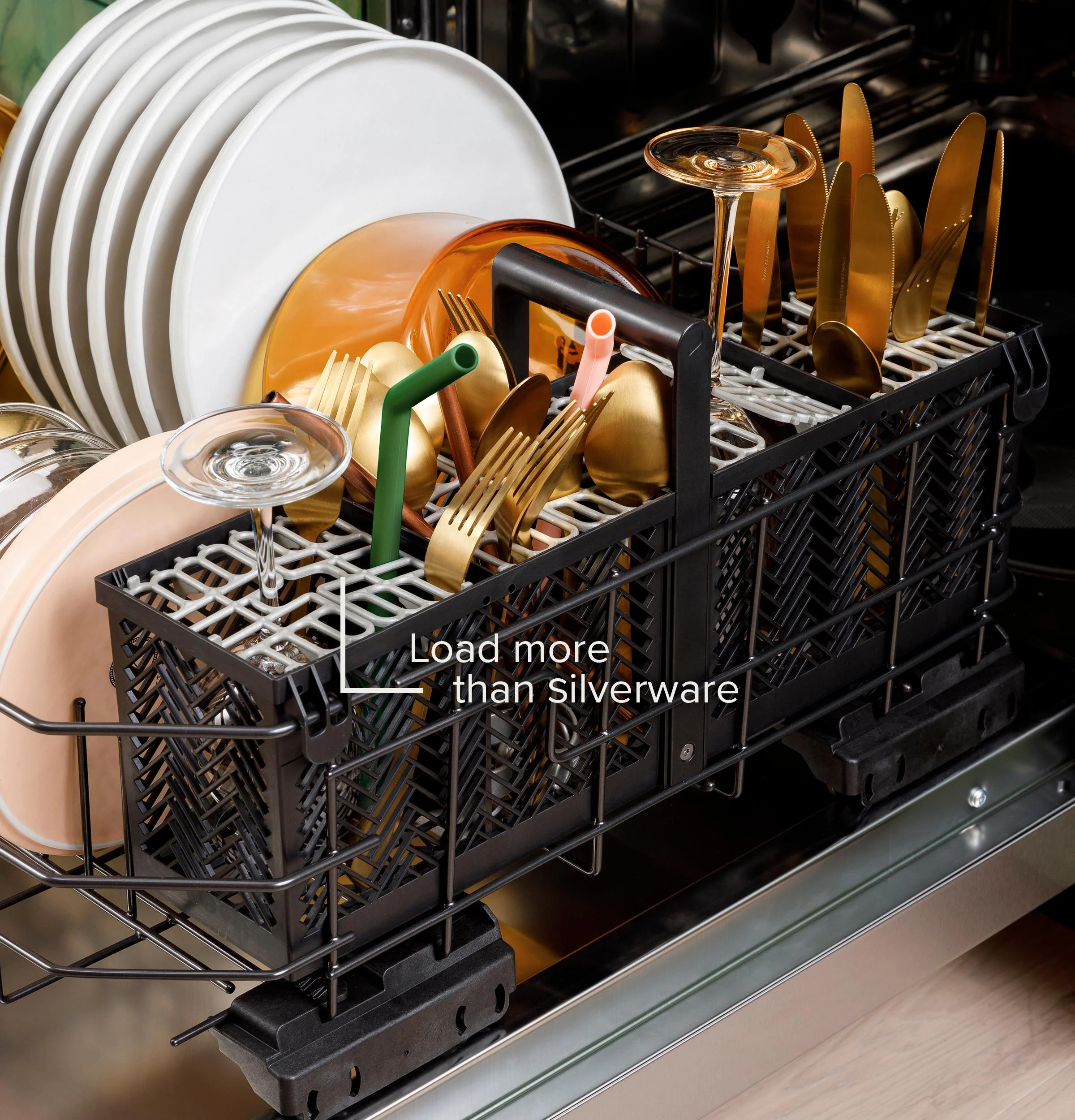

CustomFit Basket
Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.
Ultra Wash & Dry
This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

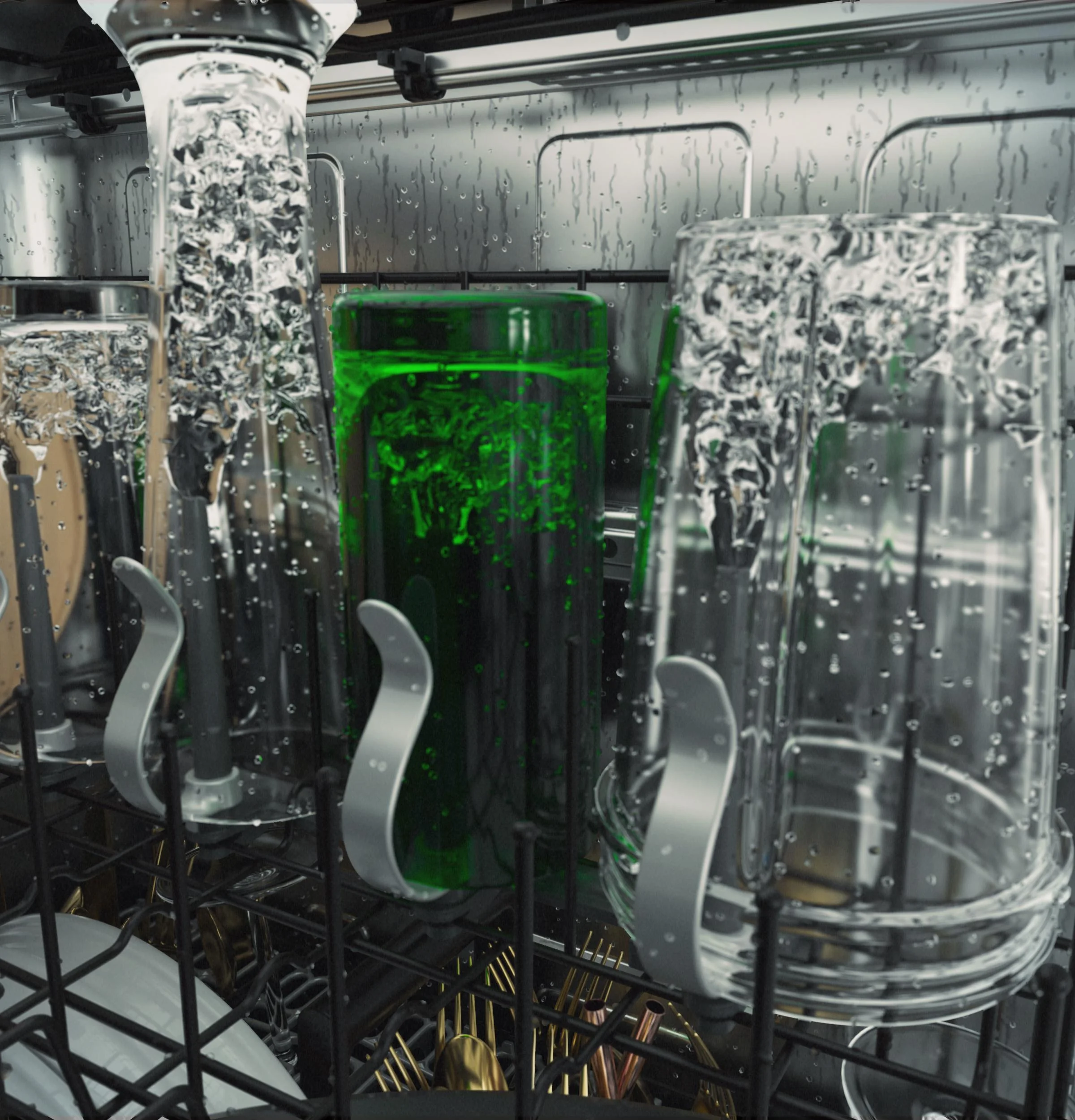

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

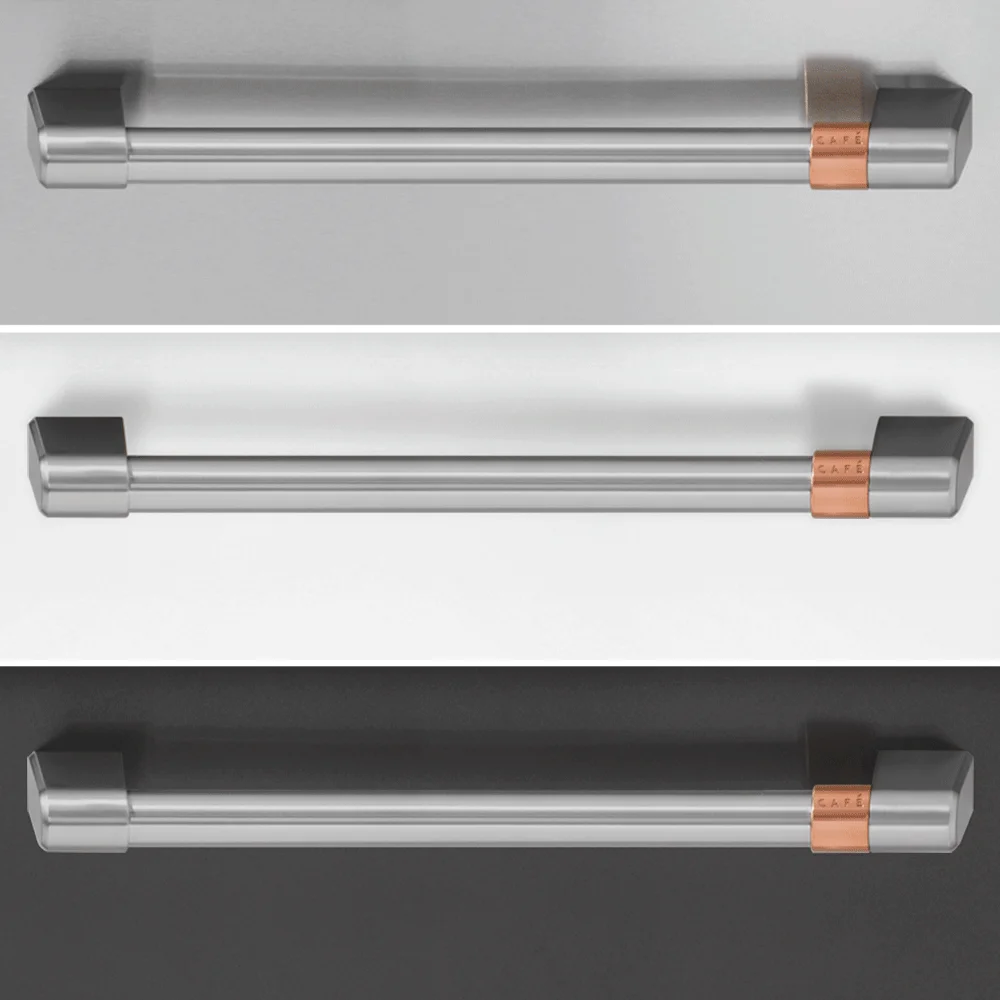

Customizable Dishwasher Handles
Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

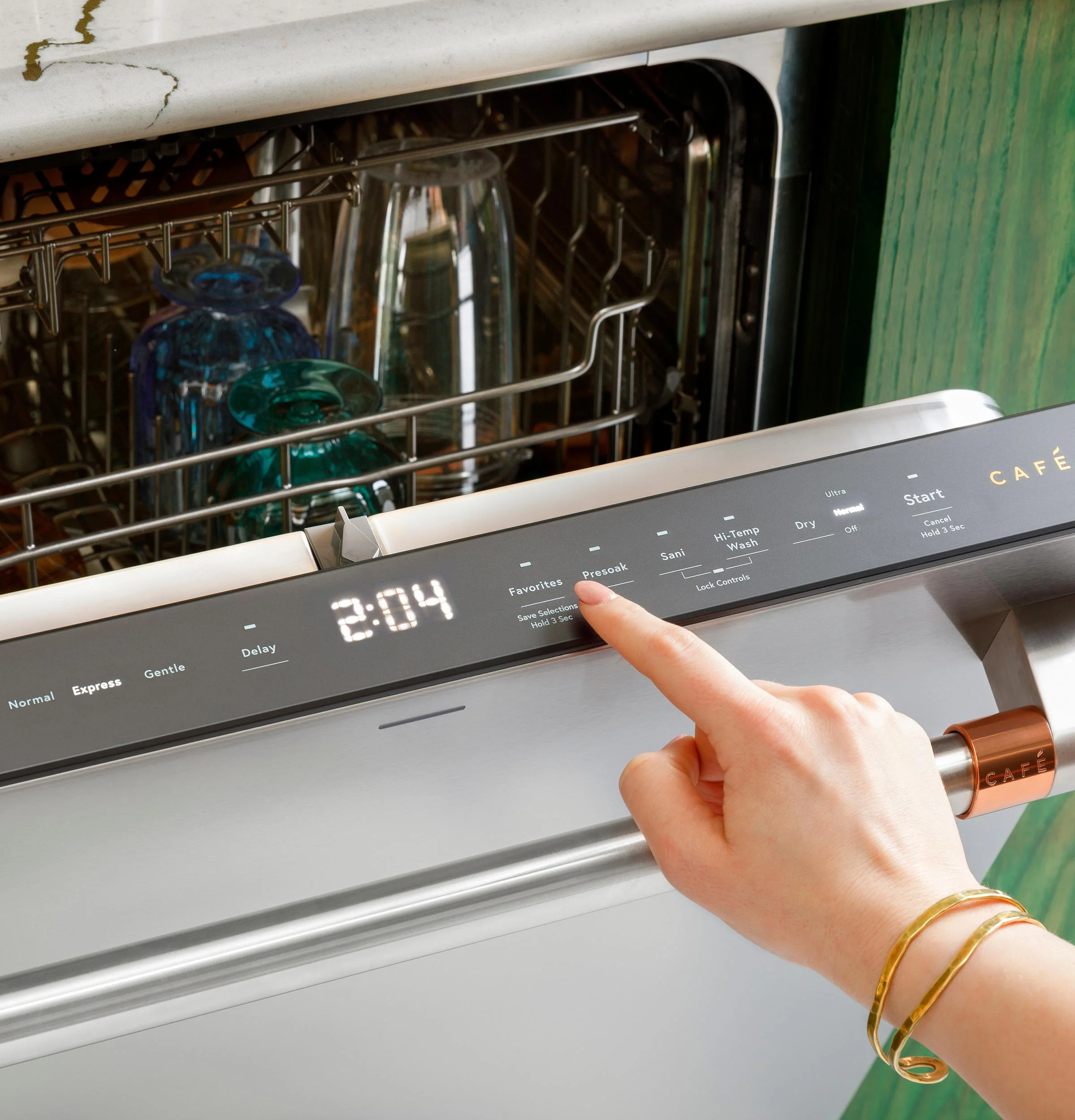

Favorites
Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.

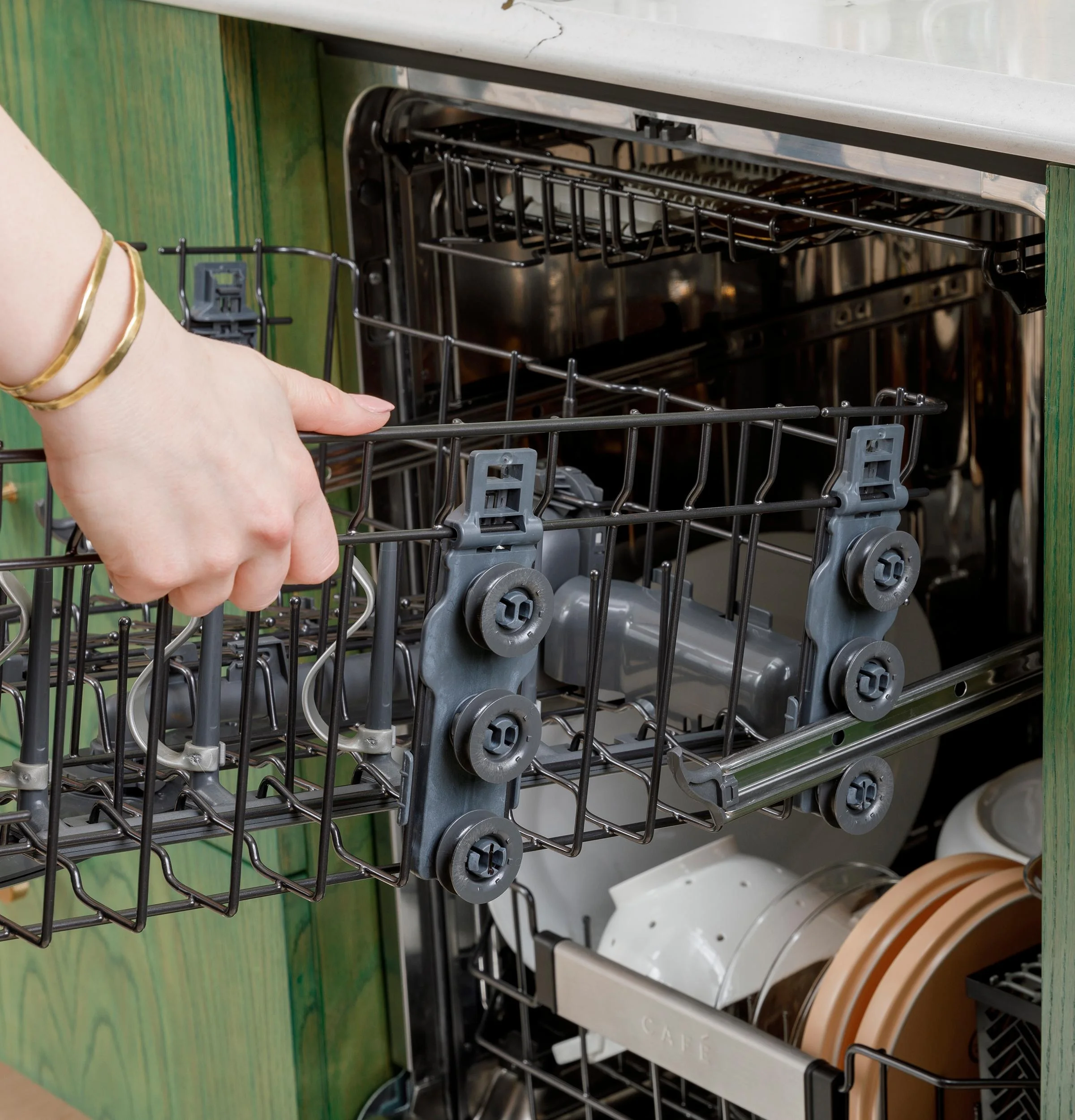

Adjustable Middle Rack
Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

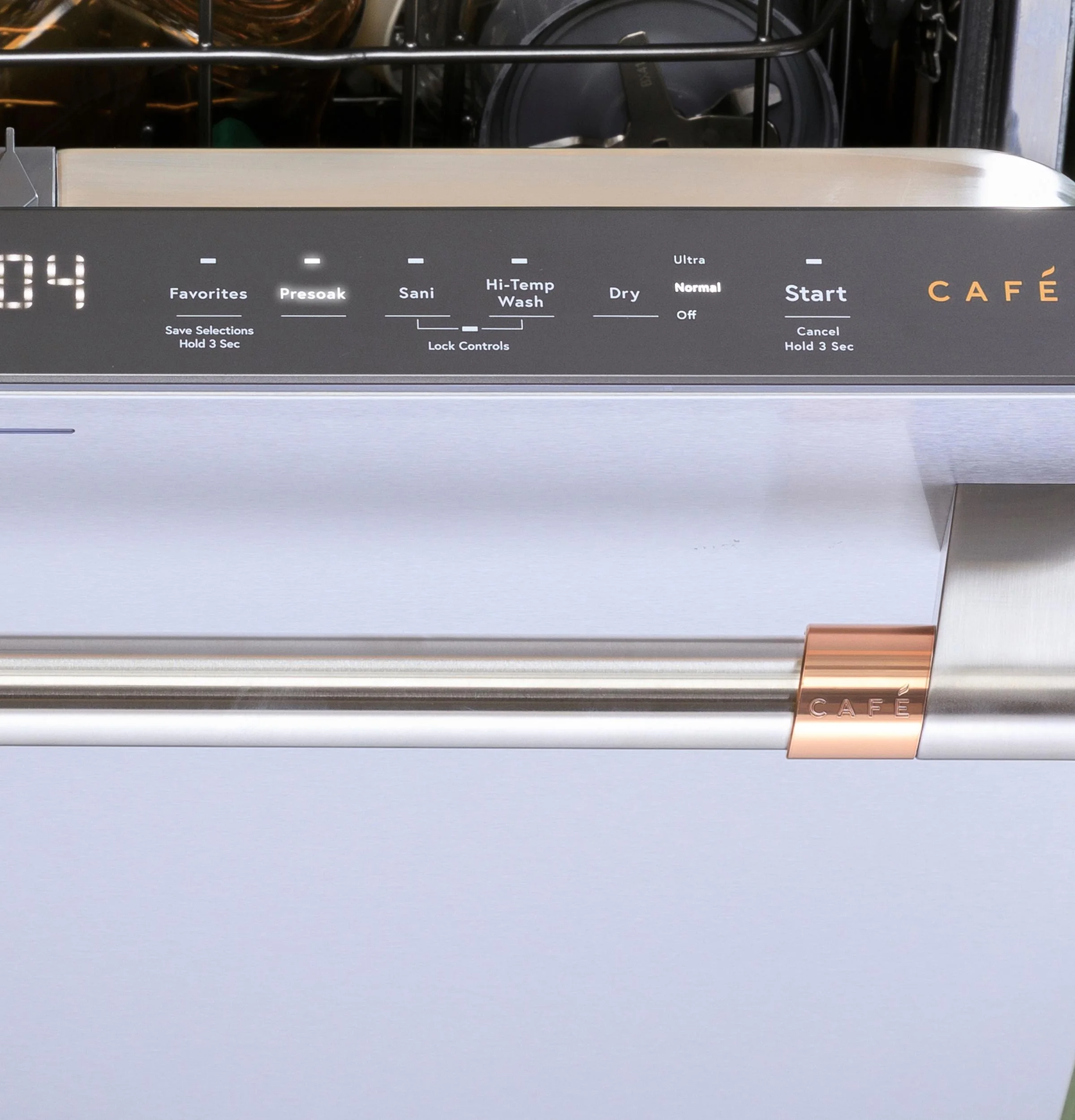

Presoak
Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.
Sanitize
Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.

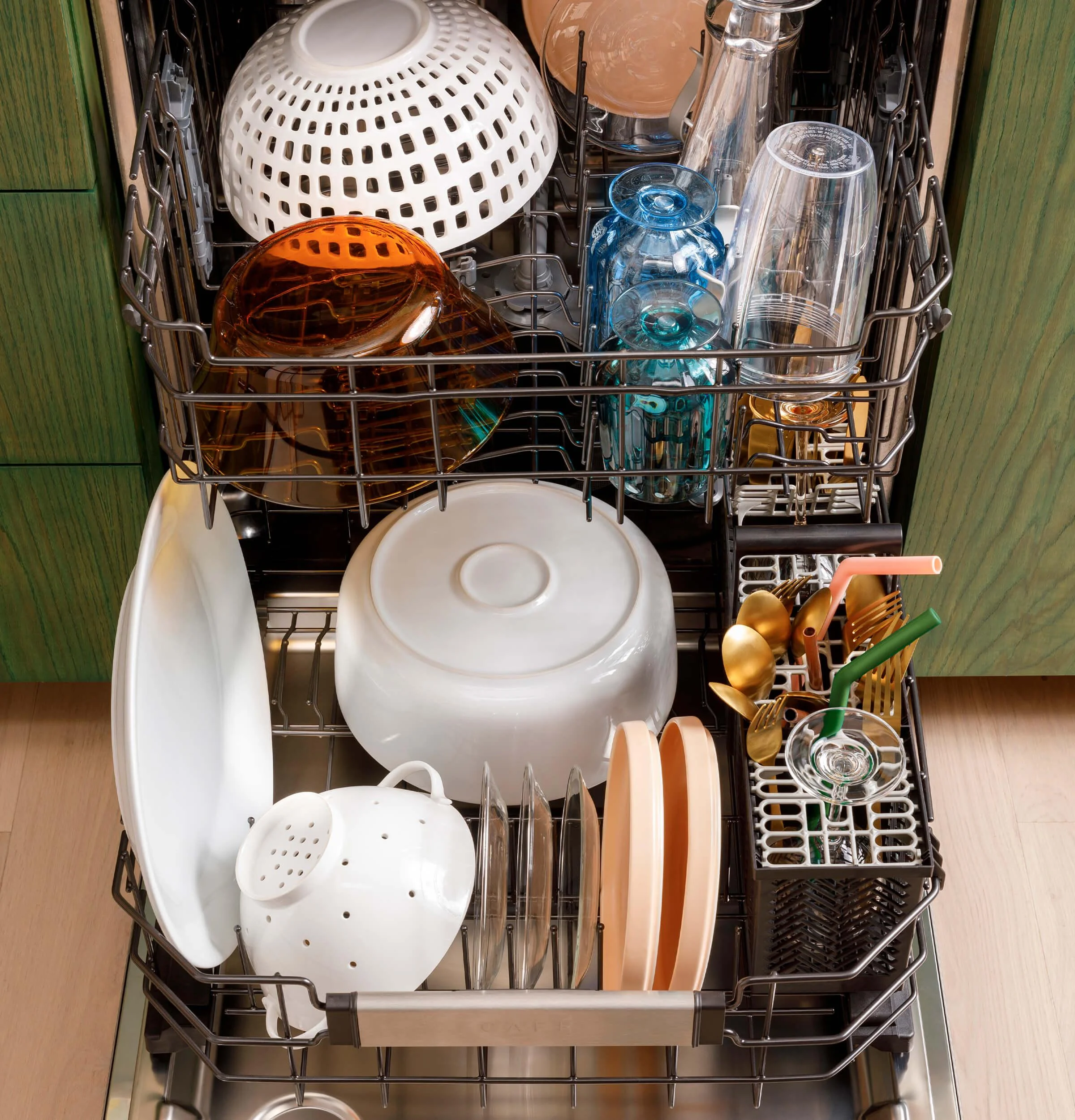

Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

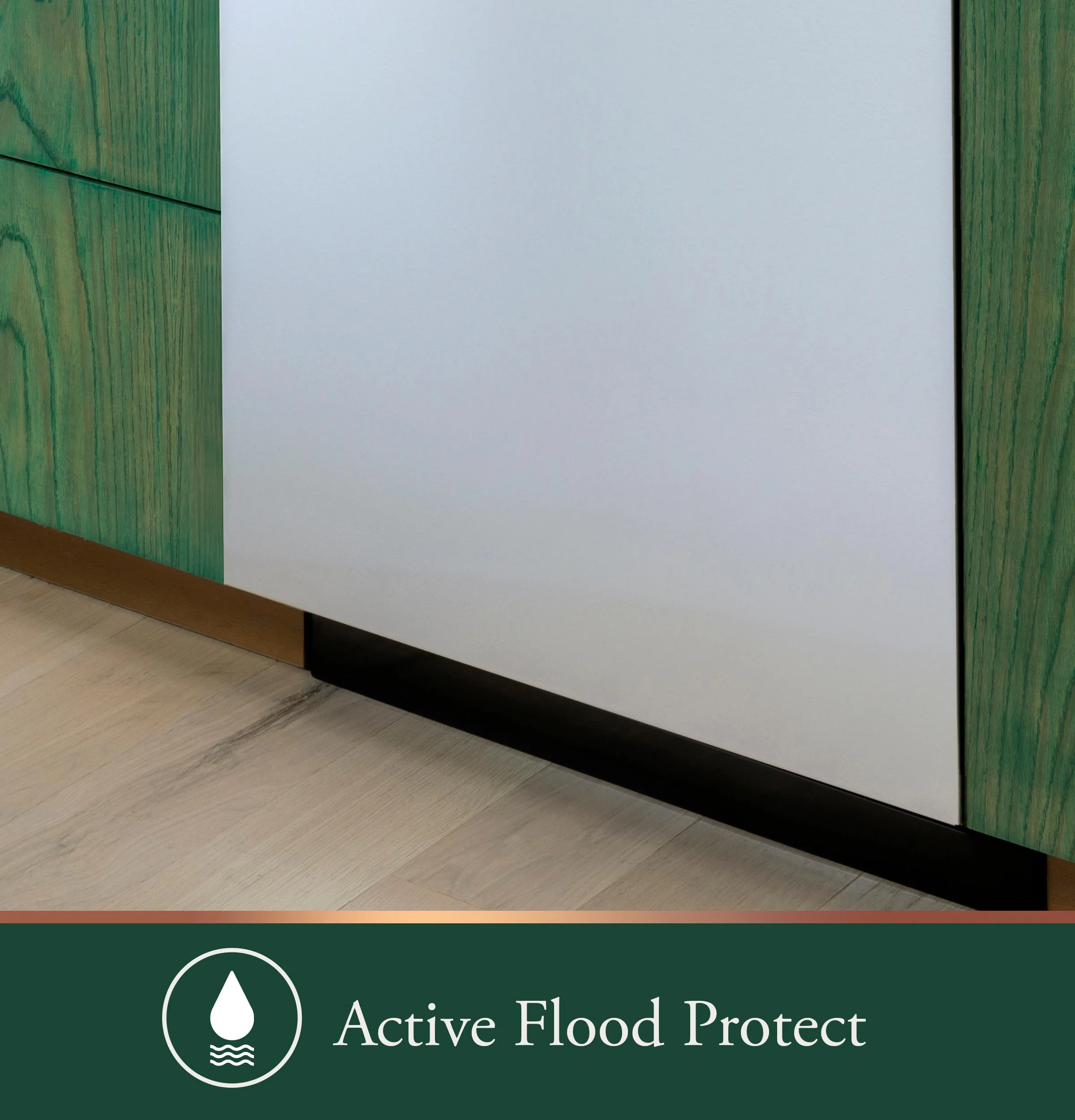

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

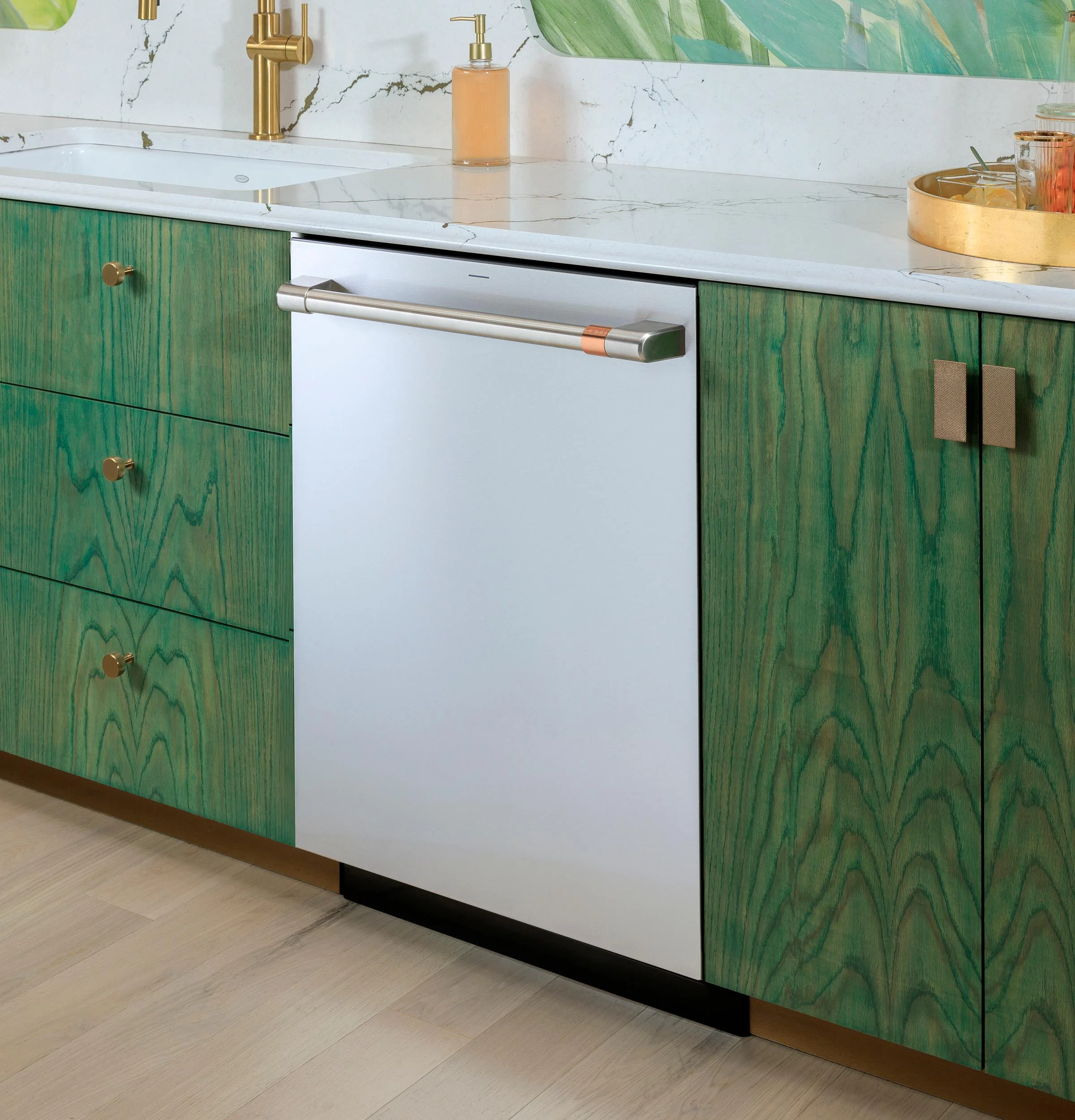

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

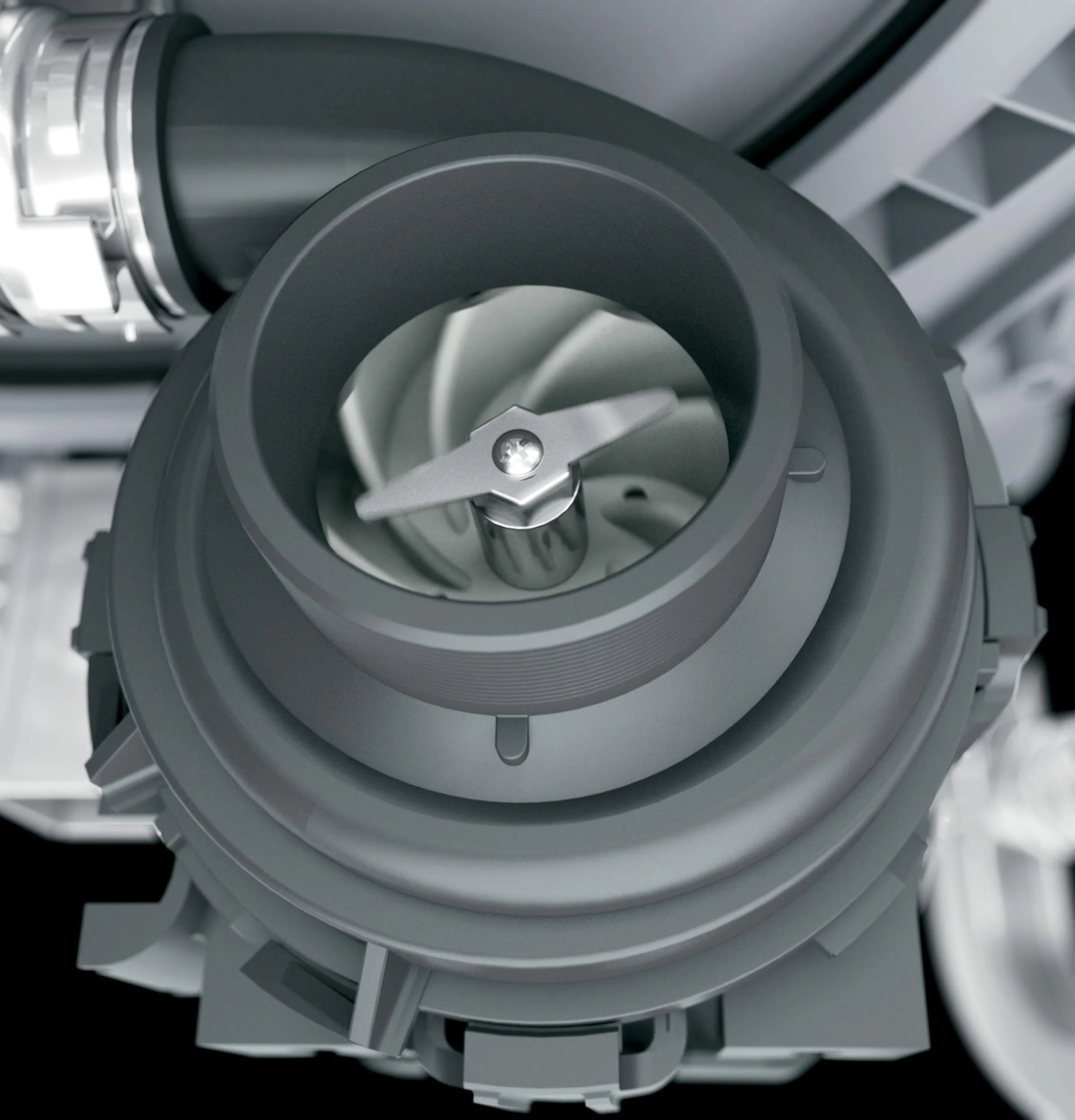

Piranha(TM) Hard Food Disposer
The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.

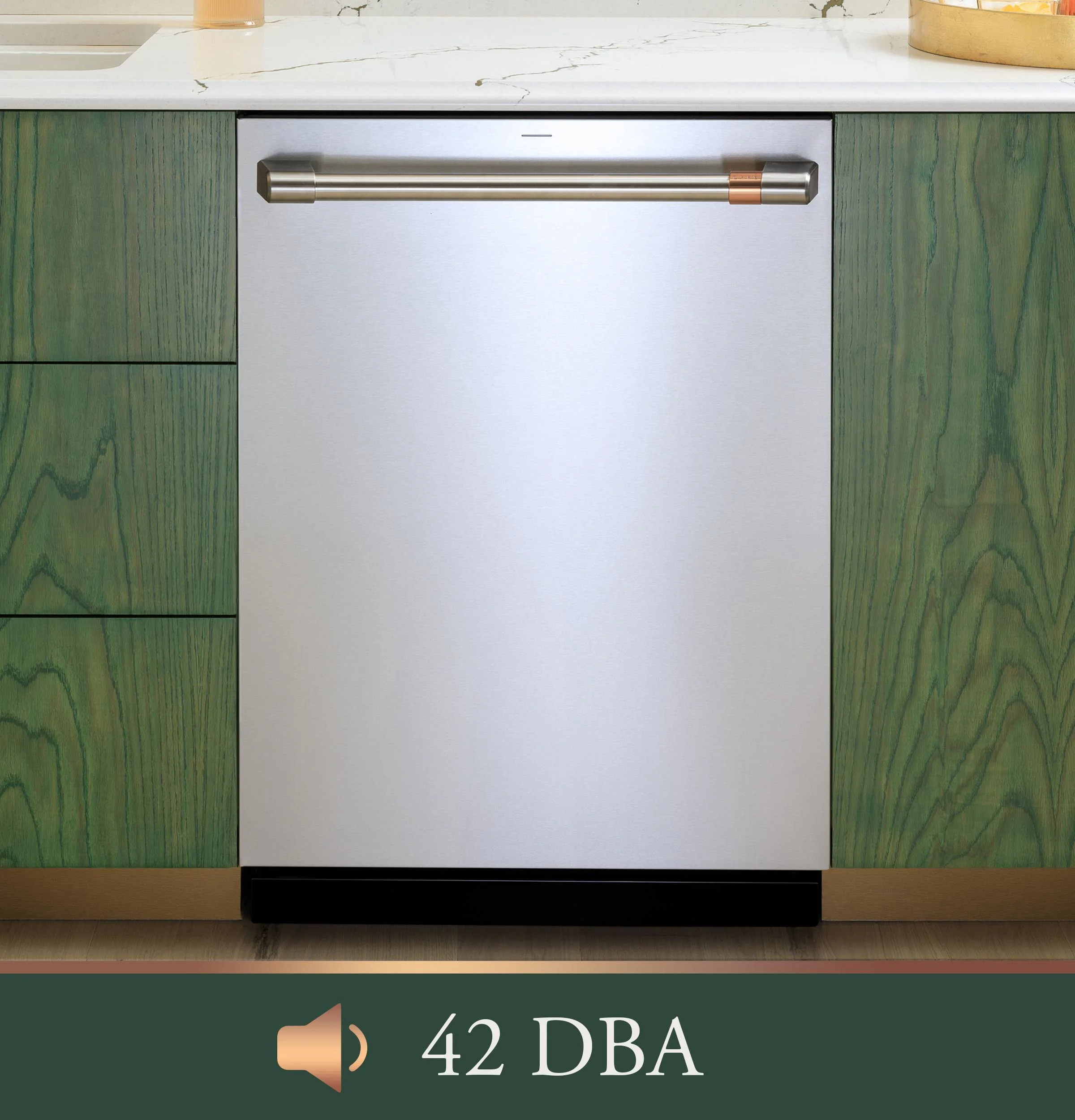

42 dBA Dishwasher
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.

Features

Adjustable Middle Rack

Adjustable Middle Rack

CustomFit Basket

CustomFit Basket

Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.

Middle and Lower Rack Fold-Down Tines

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Favorites

Favorites

Active Flood Protect

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Customizable Dishwasher Handles

Customizable Dishwasher Handles

Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Sanitize

Sanitize

Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.

Flush Installation

Flush Installation

Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Presoak

Presoak

Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.

Piranha(TM) Hard Food Disposer

Piranha(TM) Hard Food Disposer

The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.

42 dBA Dishwasher

42 dBA Dishwasher

Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.

CustomFit Top Rack

CustomFit Top Rack

Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.

Specifications

appearance

Handle
Café(TM)
Installation
Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included
Handle Color
Brushed Stainless
Door Style
Long Door with Top Controls
Door Appearance
Full-length flat door
Color Appearance
Stainless Steel
Control Panel Color
Matte Dark Slate, Fingerprint Resistant
Handle Design
Customizable

power / ratings

Power Connection
Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)
240
Electrical Requirements
120v ; 60Hz ; 7.2A
Calrod Heater Watts
800/500
Volts/Hertz/Amps
120V; 60Hz; 7.2A
Hertz
60
Watts
936

warranty

Labor Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 1-year entire appliance

economical / quiet

Door Insulation
Insulation Mastic
Quiet Package
42 dBA
Outer Wrap
Bitumen Full-wrap Blanket
Motor Type
Variable Speed
Quiet Features
Quiet Water Valve Sealed Toe Kick Tub Collar Trim

accessories

Optional 12' Drain Hose
Optional hose kit (WD24X10065)
Optional Kits
CXADTH1PVBT Brushed Black CXADTH1PVBZ Brushed Bronze CXADTH1PVCG Brushed Brass CXADTH1PVCU Brushed Copper CXADTH1PVFB Flat Black CXADTH1PVSS Brushed Stainless

weights & dimensions

Height w/ Legs Retracted - Minimum Height
33.375 in
Cutout Height (in)
33 1/2 in
Overall Depth
24 in
Cabinet Width
24 in
Net Weight
124 lb
Overall Width
23.75 in
Approximate Shipping Weight
137 lb
Overall Height
34 in
Overall Depth with Handle
26.3 in
Cutout Depth (in)
24 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
25.5 in
Cutout Width (in)
24 in

features

Wash System
3-Level 800 Series
Sensor
Clean Sensor
Lower Rack
1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines
Tub Type
Tall Tub
Leveling System
4 Leveling Legs
OU Certified
No
Additional Protection
Active Flood Protect
Number of Place Settings
16
Dishwasher Options
Bottle Wash (on app) Delay Start 1-12 Hr. Favorites Favorites (on app) Heated Dry Off Hi-Temp Wash Lock Controls Normal Dry Pre Soak Sabbath Mode Sani (Certified to NSF Standard 184) Start/Cancel Ultra Dry Wash Zones/Half Load (on app)
Latch
Pull with Handle
Number of Options
15
Style
Built-In Top Control
Water Filtration System
100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray
One piece removable 3rd rack
Rack Features
Adjustable Upper Rack Ball-Tipped Tines Cafe Flex Silverware Basket
Racking Material
Nylon
Smart Assist
Yes
Dishwasher Cycles
Auto Cookware Express Gentle Normal
Rack Color
Black Pearl
Dispenser
Rinse Aid with Indicator and Adjustment
WiFi Connect
Optional (Requires part no. PBX23W00Y1)
EcoBalance Compatible
Yes
Control Type
8 Touchpads Cap Touch Controls Top Controls
Racking System
Full 3rd rack
Dishwasher Drying Features
Heated Dry - Ultra/Normal/Off Multi-Wattage Wash & Dry Element UltraDry
Wash Arms
3 Wash Levels Bottle Jets Lower Middle Upper
Wash System Features
Automatic HotStart Automatic Temperature Control Bottle Jets (4) Hard Food Disposer with removable filter Lower Wash Arm Middle Wash Arm Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack
Slilding 3rd rack + Tray
Exterior Style
Customizable Professional
Product Type
Built-In
Upper Rack
1 Rack handle 1/2 fixed tines, 1/2 fold down tines Adjustable Ball-Tip Tines Fixed tines with Bottle Jets Removable
Dishwasher Control Features
Audible End-of-Cycle Signal Cycle Countdown with Bi-Color LED Status Light on door Cycle Progress Indicators: Clean/Sanitized/Smart Assist Last Cycle Memory
Number of Cycles
5
Tub and Door Liner
Stainless Steel
Sabbath Mode
Yes
Showroom Power Mode
Yes
CustomFit Top Rack
CustomFit Basket
4 Bottle Wash Jets
Customizable Dishwasher Handles
Favorites
Adjustable Middle Rack
Presoak
Sanitize
Middle and Lower Rack Fold-Down Tines
Active Flood Protect
Flush Installation
Piranha(TM) Hard Food Disposer
42 dBA Dishwasher
Calrod Heater Watts
800/500

GS1

GTIN
00084691914587
EAN
0084691914587
UPC
084691914587

miscellaneous

Height w/ Legs Retracted - Minimum Height
33.375 in
Cutout Height (in)
33 1/2 in
Cutout Width (in)
24 in
Overall Depth
24 in
Cabinet Width
24 in
Net Weight
124 lb
Overall Width
23.75 in
Approximate Shipping Weight
137 lb
Overall Height
34 in
Overall Depth with Handle
26.3 in
Cutout Depth (in)
24 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
25.5 in
